Installing Rear TPM Transmitter

Information

Before installing the transmitter (trigger), visually check the transmitter (trigger) and plug connection with regard to the following points:

• Damage to the housing.
• Damage to the contacts on the transmitter (trigger).
• Damage to the connector and contacts on the vehicle wire harness.
• Dirty contacts.

If the transmitter (trigger) is damaged, replace it.

If the wire harness, connector or contacts are damaged, repair them in accordance with the relevant safety instructions using the Repair kit for Cayenne wire harnesses NR.155-2  .

If the contacts are dirty, clean them.

1. Move screwing tab of TPM transmitter into its holder and clip on the transmitter -arrow-  .

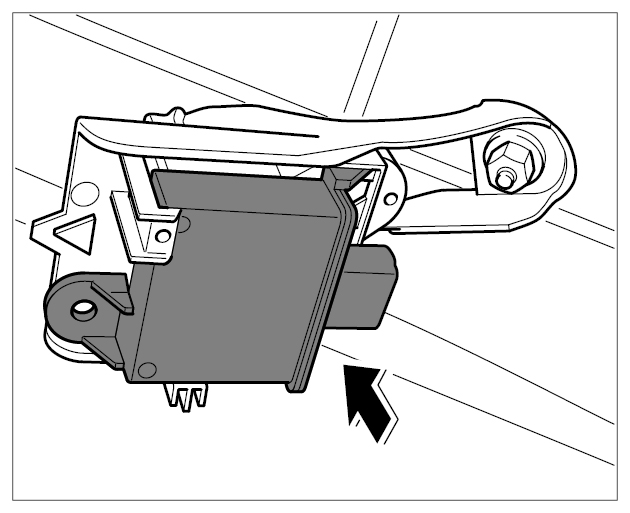

   Fig 1: Installing TPM Transmitter

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Plug in connector for the TPM transmitter -arrow-  .

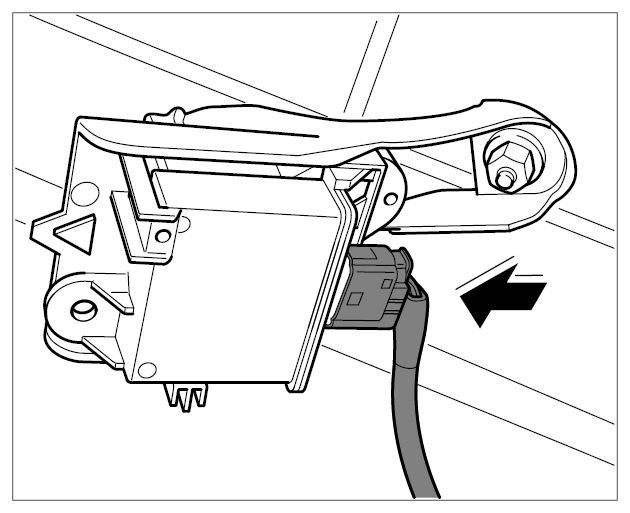

   Fig 2: Identifying TPM Connector
