Installing Complete Heater

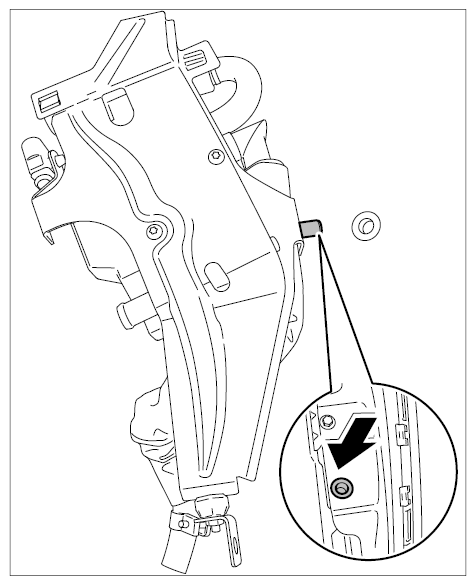

- Place heater in position.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 1.1. Insert retaining pivot into the rubber sleeve -arrow-
.
- Secure heater.

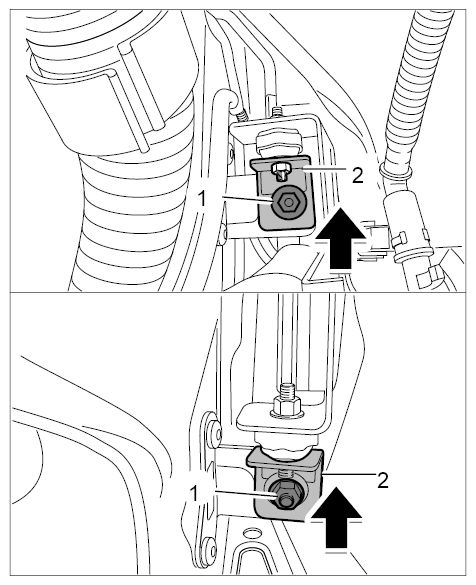

- 2.1. Position clips -2-
onto the retaining pin.
- 2.2. Loosely fit fastening nuts at top -1-
and bottom.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

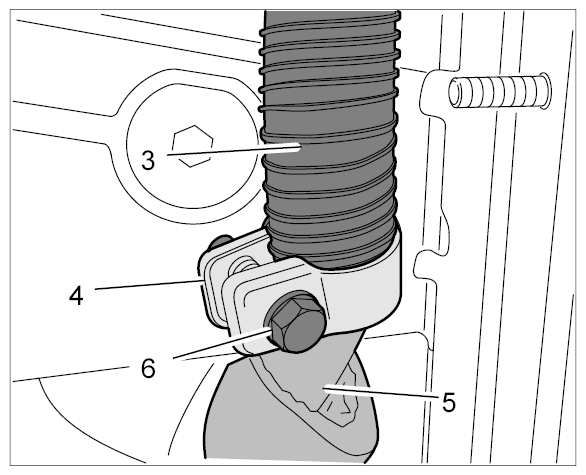

- 2.3. Slide flexi-pipe -3-
and screw-type clamp -4-
onto muffler -5-
.
- 2.4. Tighten both fastening nuts -1-
for bracket.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Tighten screw -6-
for the clamp.
- Fit coolant hoses.
- 4.1. Push coolant feed and return hoses over the heater's connection piece.

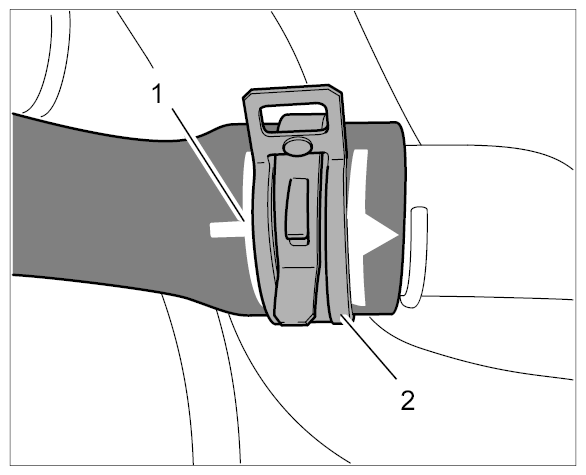

- 4.2. Position spring band clamps -2-
on the markings -1-
using mounting pliers and slacken them.
- 4.3. Remove tools for disconnecting the hoses.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Fit fuel hose. Use a new clamp.

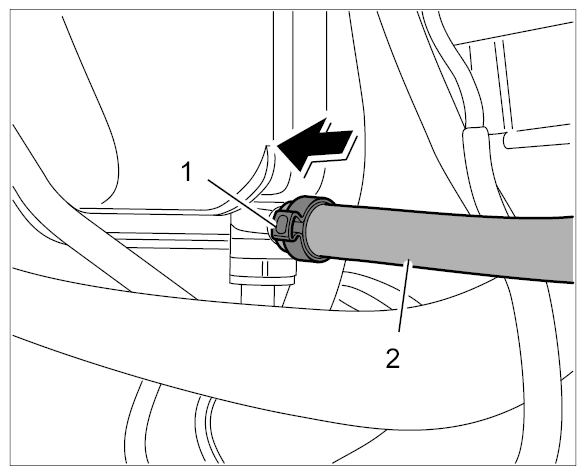

- 5.1. Connect fuel hose -2-
to the line.
- 5.2. Secure fuel hose -2-
onto line using new clamp -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

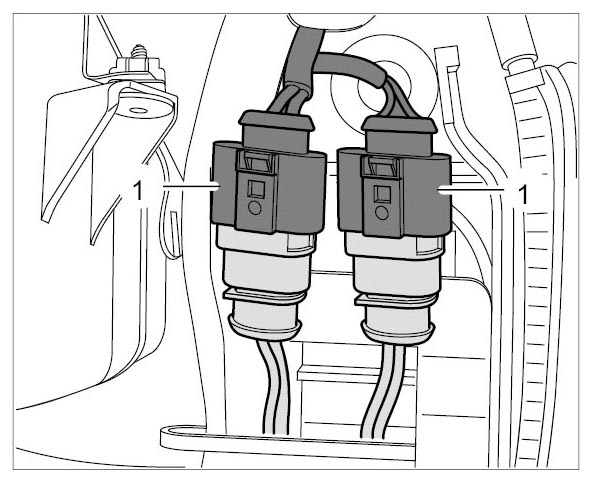

- Connect electric plug connections -1-
until they engage securely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
