Removing Air Cleaner Housing

  1. Unclip sensor for garage door opener if necessary. → Garage door sensor

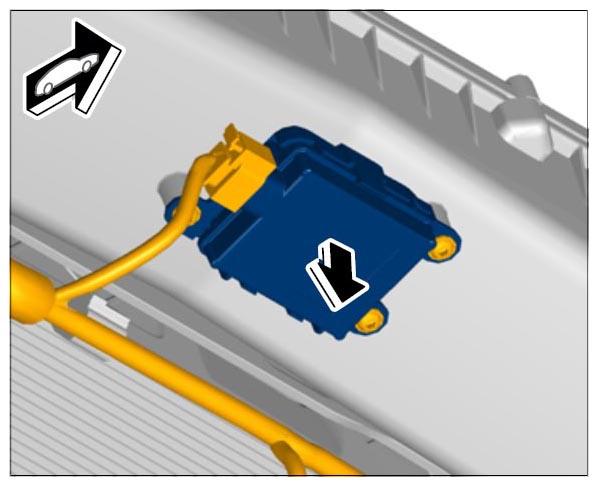

    Fig 1: Removing Garage Door Sensor
    G09805718Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove four fastening screws on the air cleaner housing.

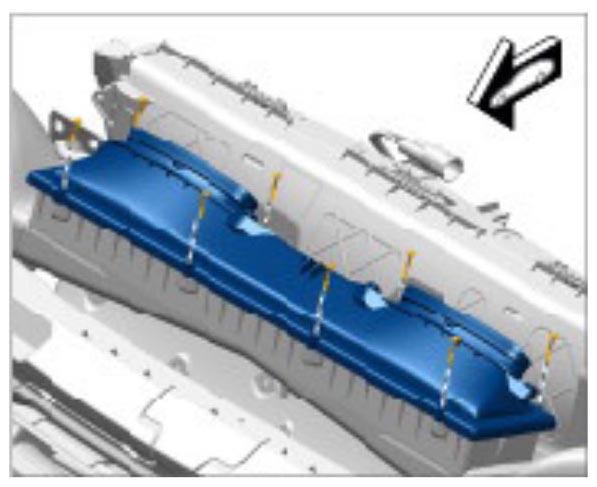

    Fig 2: Loosening Screws On Air Cleaner Housing
    G09805719Courtesy of PORSCHE CARS NORTH AMERICA, INC.
