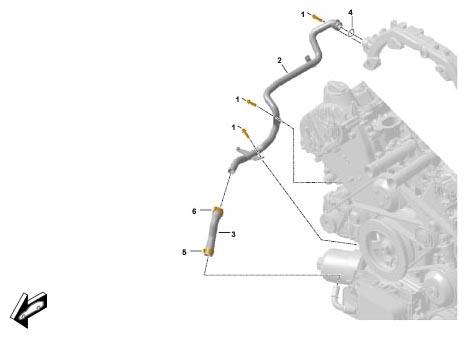

Coolant Supply Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ftlb.)
- Coolant supply pipe, front left
- Coolant supply hose, front left to heat exchanger (oil cooler)
- O-ring, 19.6 x 3.53/replace
- Clamp, B25 x 12
- Clamp, B27 x 12
