Gap Dimensions Of Front Apron

→

Gap dimension: 4 mm+1 mm-0.5 mm (B1)

Gap dimension: -1.5 mm+1 mm-1 mm (B2)

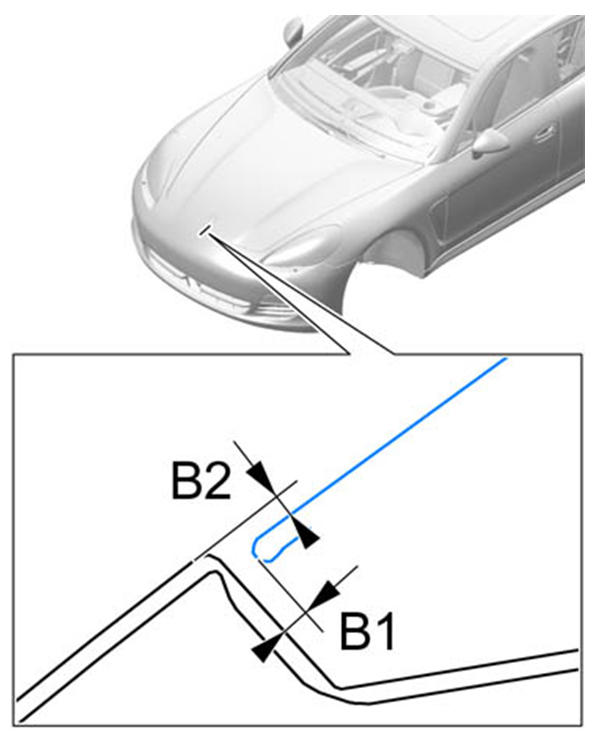

Fig 1: Identifying Gap Dimensions Of Front Apron (B1 & B2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

→

Gap dimension: 0 mm+1 mm-1 mm (B3)

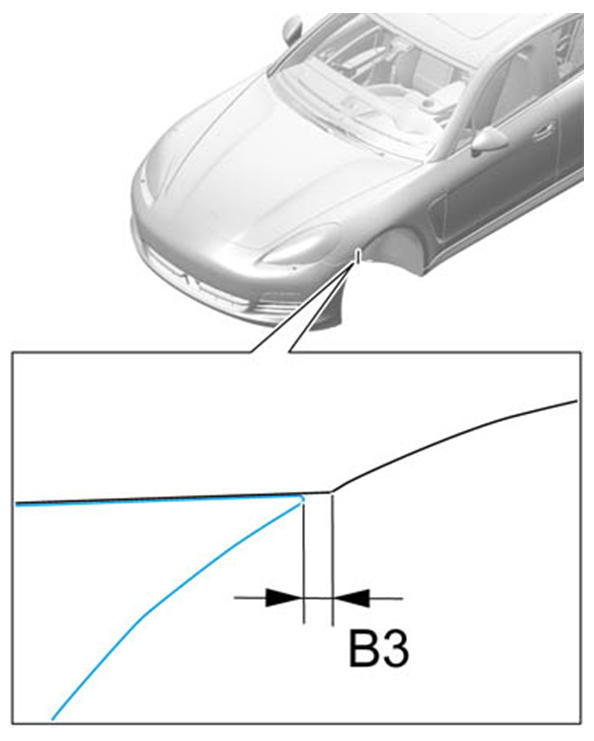

Fig 2: Identifying Gap Dimensions Of Front Apron (B3)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

→

Gap dimension: 4.5 mm+1.5 mm-1.5 mm (S1)

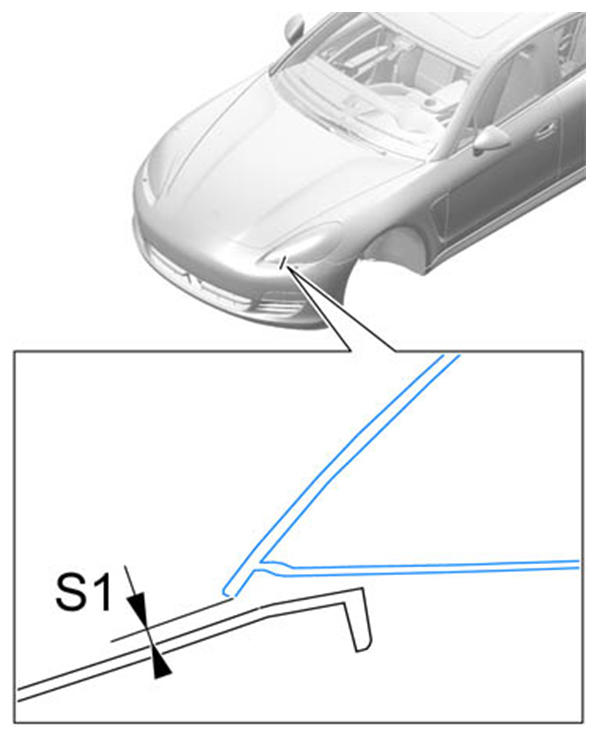

Fig 3: Identifying Gap Dimensions Of Front Apron (S1)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension
