Removing C-Pillar Reinforcement

  1. Remove rear side panel (roof removed). → 535555 replacing rear side panel (roof removed)
  2. Remove rear cross member. → 510955 replacing rear cross member
  3. Cut through all plates. → Distance: 30 mm

    Information

    Drill out spotwelds A  through two plate thicknesses.

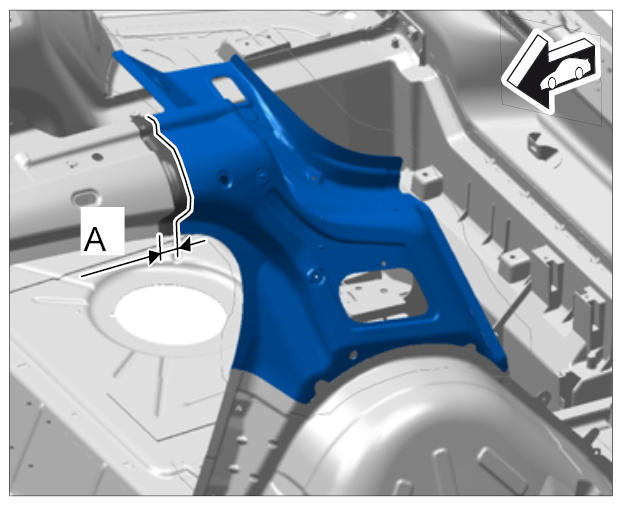

    Fig 1: Cutting Plates
    G09809821Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Drill out spotwelds using Spotweld drill   .

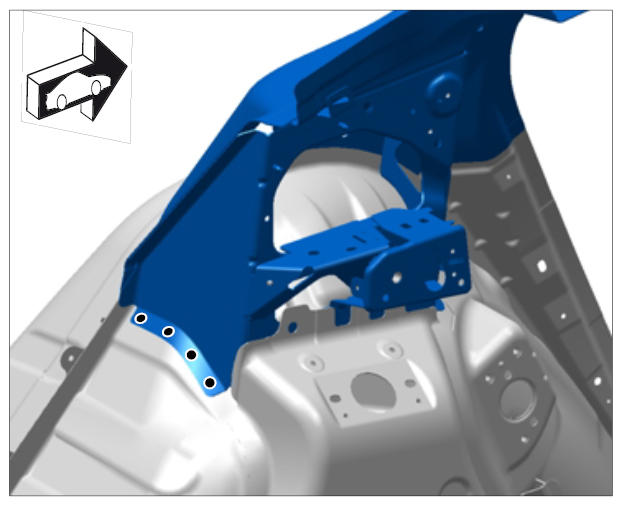

    Fig 2: Drilling Out Spotwelds
    G09809822Courtesy of PORSCHE CARS NORTH AMERICA, INC.

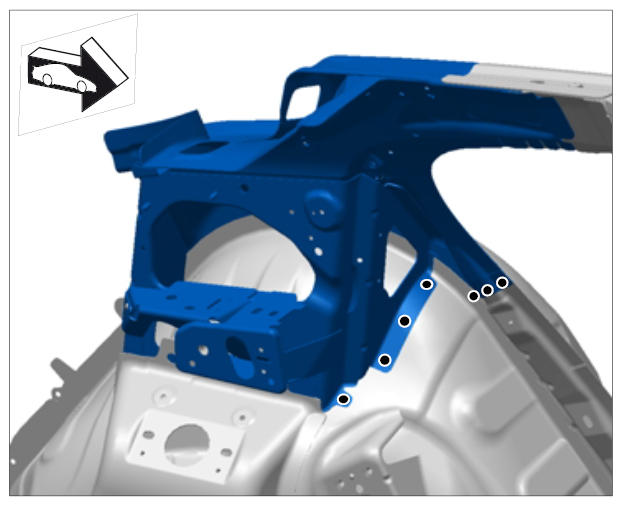

    Fig 3: Drilling Out Spotwelds
    G09809823Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Drill out spotwelds A  through two plate thicknesses.

  5. Drill out spotwelds using Twist drill nr.201  (diameter: 6.5 mm).

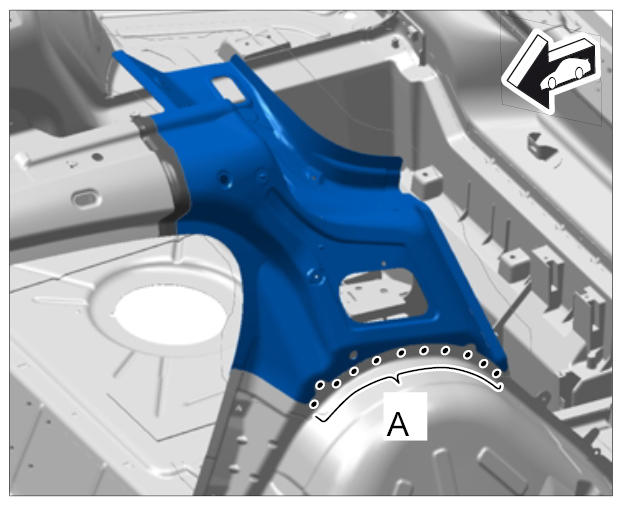

    Fig 4: Drilling Out Spotwelds Using Twist Drill
    G09809824Courtesy of PORSCHE CARS NORTH AMERICA, INC.

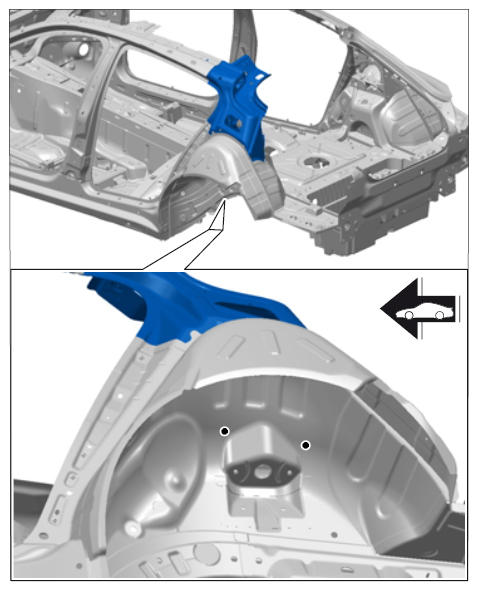

    Fig 5: Drilling Out Spotwelds Using Twist Drill
    G09809825Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Grind down mig seams.

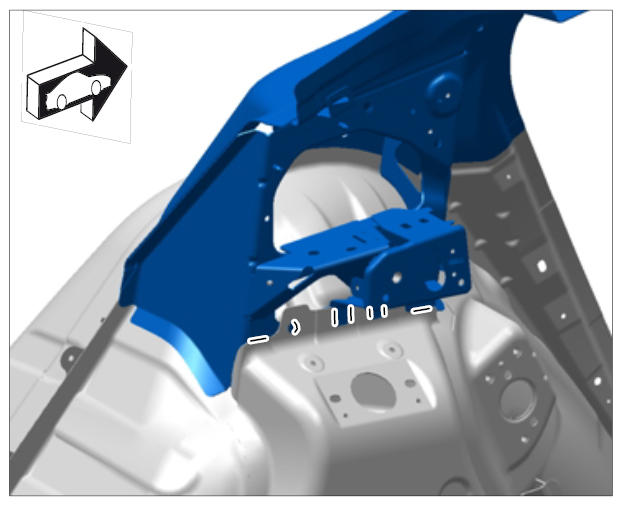

    Fig 6: Grinding Down Mig Seams
    G09809826Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Heat up connection areas using a hot-air gun.
    Fig 7: Identifying Heat Up Connection Areas
    G09809827Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Fig 8: Identifying Heat Up Connection Areas
    G09809828Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Fig 9: Identifying Heat Up Connection Areas
    G09809829Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Fig 10: Identifying Heat Up Connection Areas
    G09809830Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Remove c-pillar reinforcement and inner c-pillar panel.
  9. Remove remaining pieces of c-pillar reinforcement and inner c-pillar panel.
    1. 9.1. Bend up plate. -arrow-

      Information

      Drill out spotwelds A  through two plate thicknesses.

      Information

      Drill out spotwelds B  through three plate thicknesses.

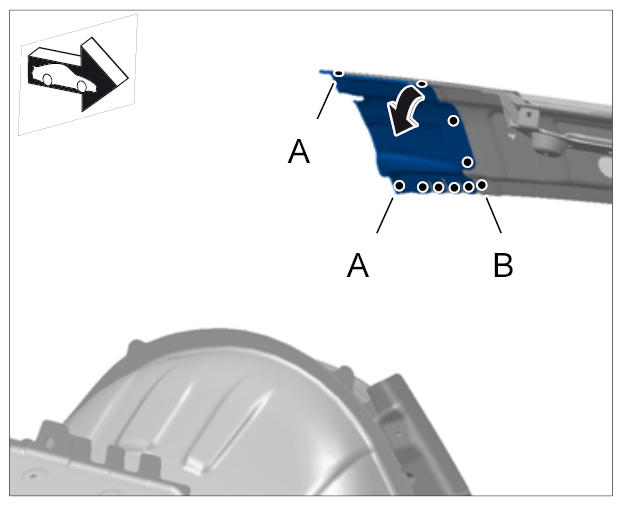

      Fig 11: Drilling Out Spotwelds
      G09809831Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 9.2. Drill out spotwelds using Spotweld drill   .
    3. 9.3. Heat up connection areas using a hot-air gun.
      Fig 12: Identifying Heat Up Connection Areas
      G09809832Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    4. 9.4. Remove remaining pieces of c-pillar reinforcement and inner c-pillar panel.
