Installing Right Cover

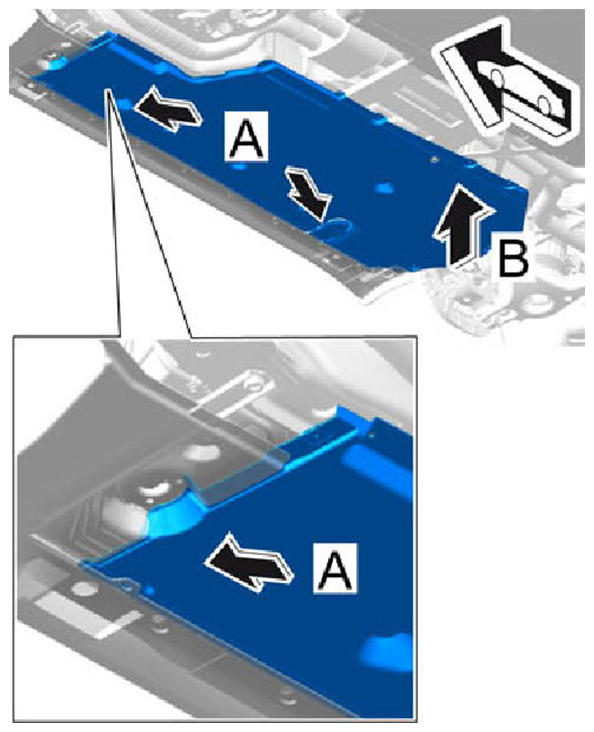

- Position the cover -A-
and press it up -B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

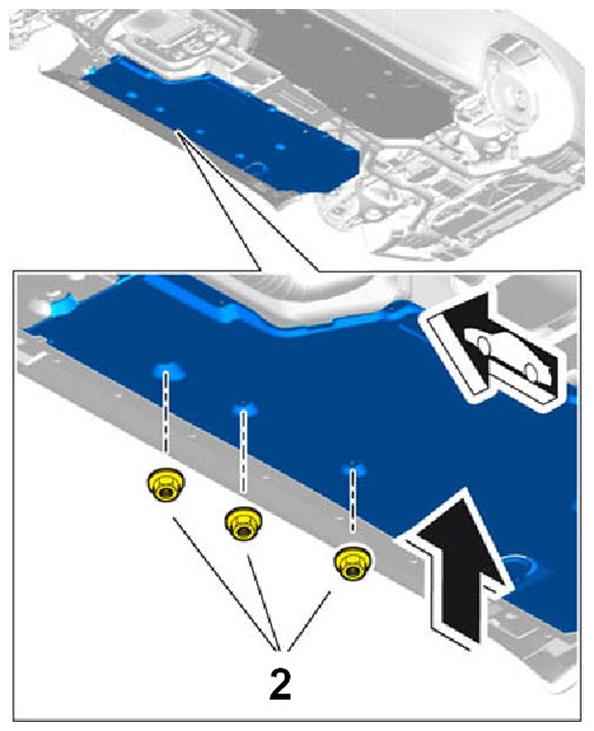

- Tighten fastening nuts -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

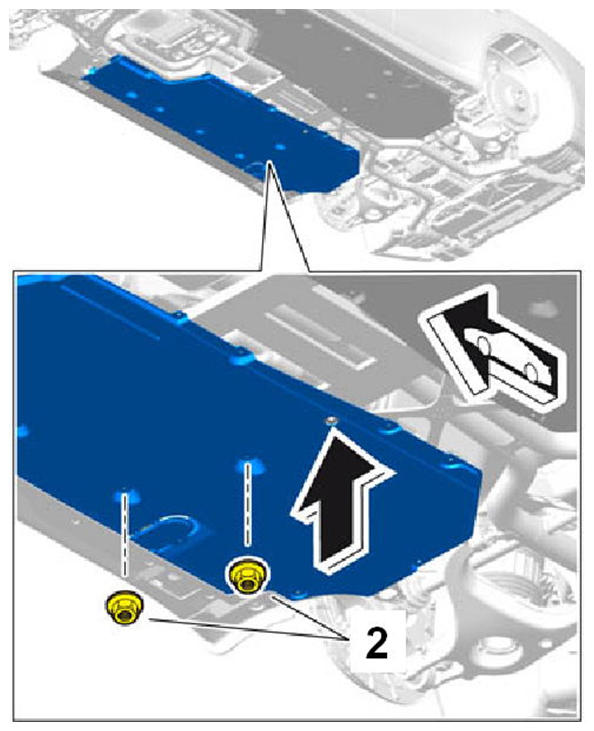

- Tighten fastening nuts -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

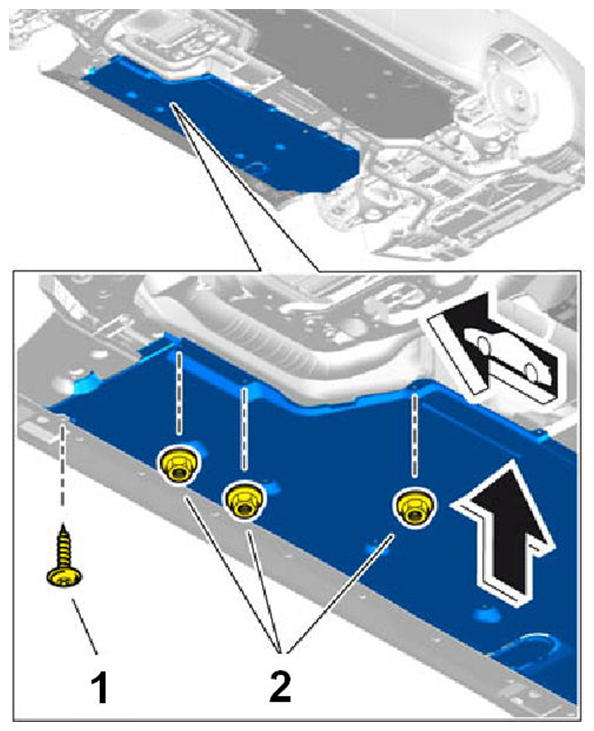

- Screw in and tighten fastening nuts at the front -2-
and fastening screw -1-
for the door sill.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Screw in center and rear fastening screws.
- Install tunnel cover.
- Tighten fastening screws to the specified tightening torque Tightening torque 2.8 Nm (2 ftlb.) +/-0.5 Nm (+/-0.5 ftlb.)
.
- Tighten fastening nuts to the specified tightening torque Tightening torque 2.8 Nm (2 ftlb.) +/-0.5 Nm (+/- 0.5 ftlb.)
.
