Removing Cover For Rear Seat

1. 1.1. For seats with and without seat heating:
   1. 1.1.1. Remove seat adjustment switch and cover if fitted. → 727619 REMOVING AND INSTALLING SWITCH FOR REAR SEAT ADJUSTMENT

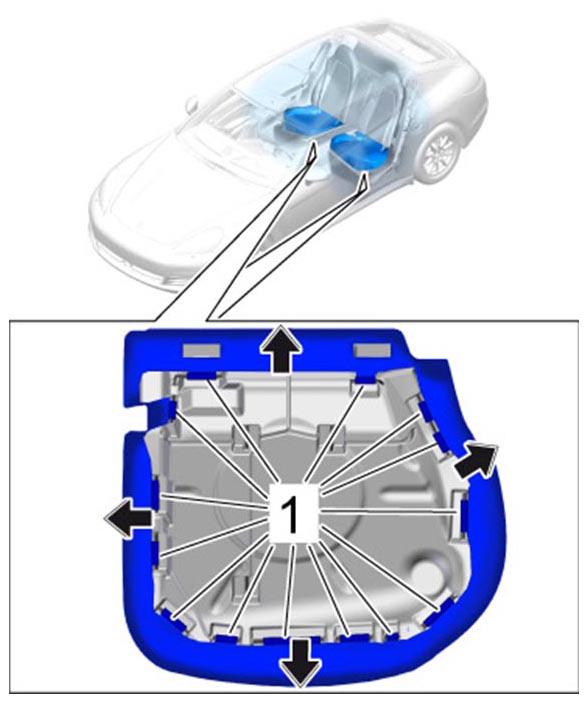

   2. 1.1.2. Disengage the seat cover hooks -1-  from the metal frame.
      Fig 1: Disengaging Seat Cover Hooks

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

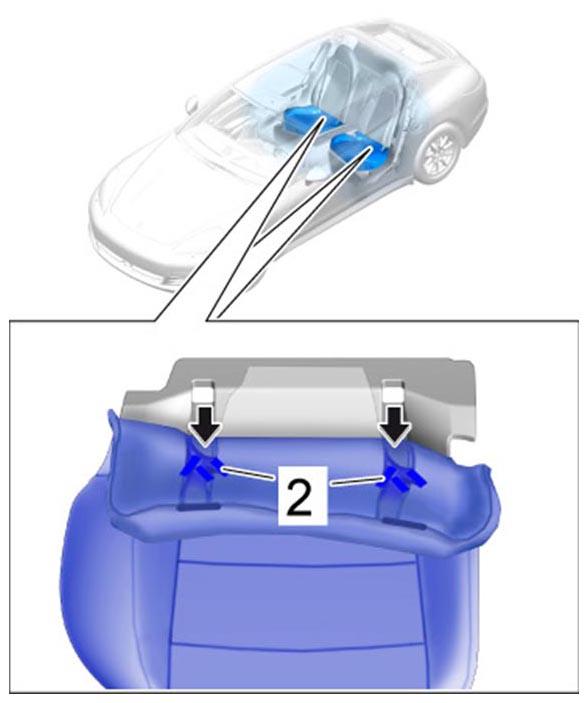

   3. 1.1.3. Loosen the cushion clips -2 -  at the rear left and right and guide the cover in through the seat cushion.
      Fig 2: Loosening Cushion Clips

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Seats with seat-surface extension:

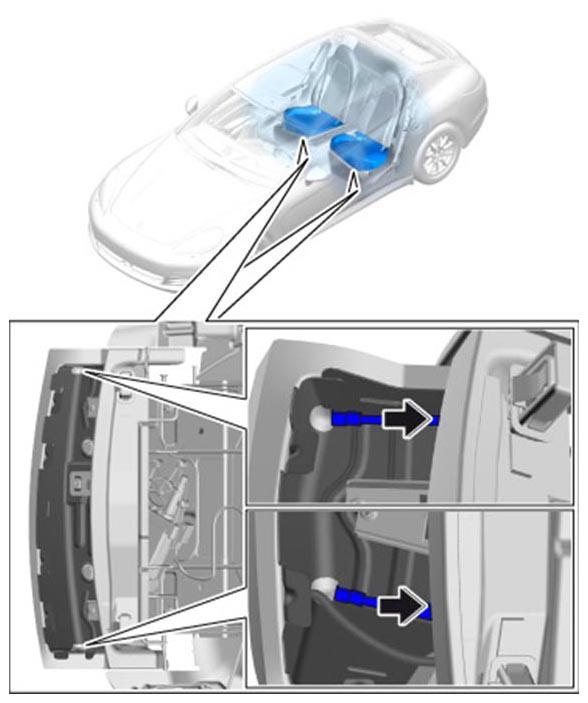

   1. 1.2.1. Disengage two seat cover holders at the left and right.
      Fig 3: Disengaging Seat Cover Holders

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

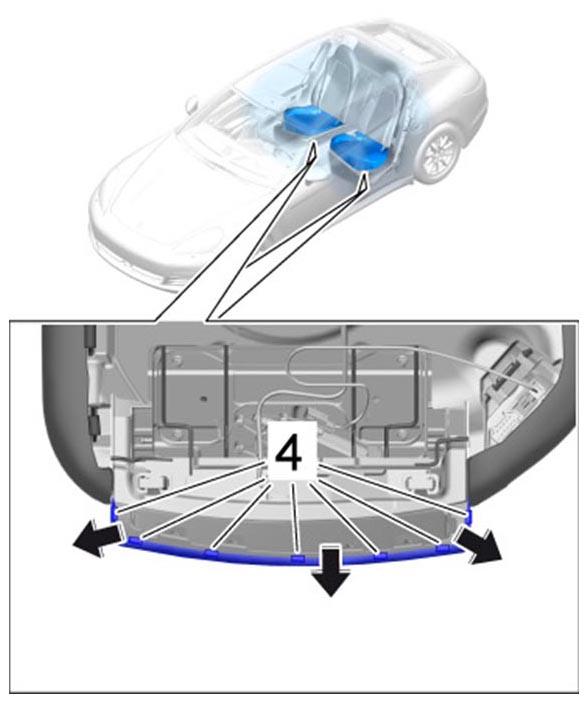

   2. 1.2.2. Disengage seat cover and seat cover hooks -4-  at the front.
      Fig 4: Disengaging Seat Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

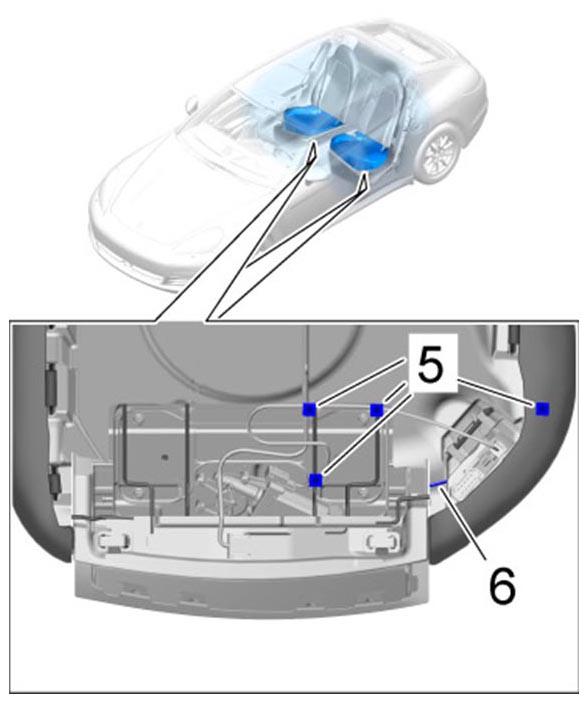

   3. 1.2.3. Cut tie-wraps -5-  and one (metal) cushion clip -6-  .
      Fig 5: Cutting Tie-Wraps

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 1.2.4. Remove seat adjustment switch and cover if fitted. → 727619 REMOVING AND INSTALLING SWITCH FOR REAR SEAT ADJUSTMENT

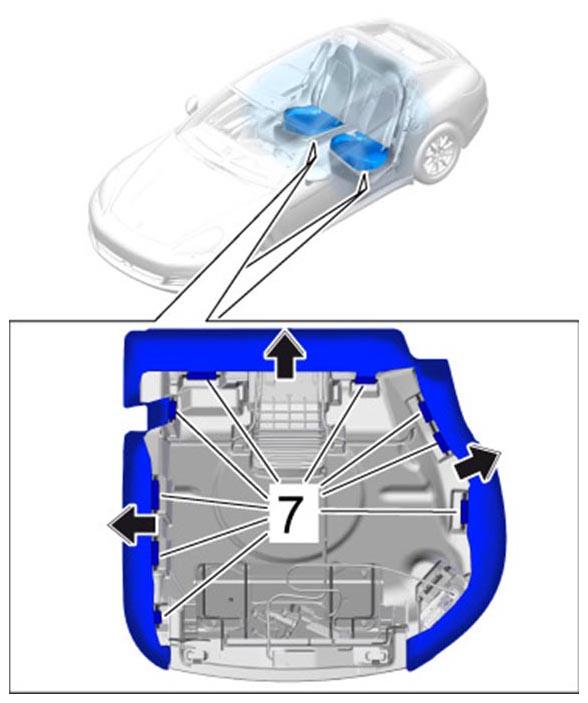

   5. 1.2.5. Disengage seat cover hooks -7-  from the metal frame.
      Fig 6: Disengaging Seat Cover Hooks

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   6. 1.2.6. Detach the Velcro fasteners at the rear left and right and guide them in through the seat cushion.

1. 2.1. For seats with seat heating:
   1. 2.1.1. Disconnect electric plug connections for the heating elements in the side bolsters.
      Fig 7: Disconnecting Plug Connections In Side Bolsters

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

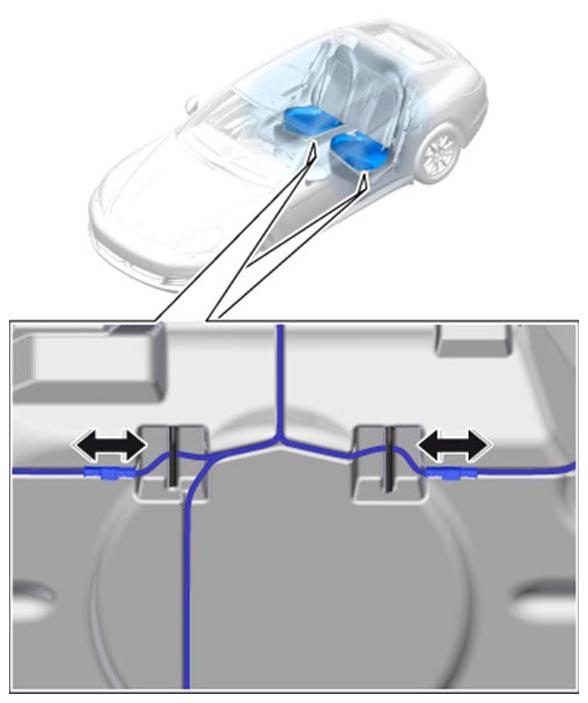

   2. 2.1.2. Guide electric lines through the side bolsters at the left and right.
      Fig 8: Moving Electric Lines

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

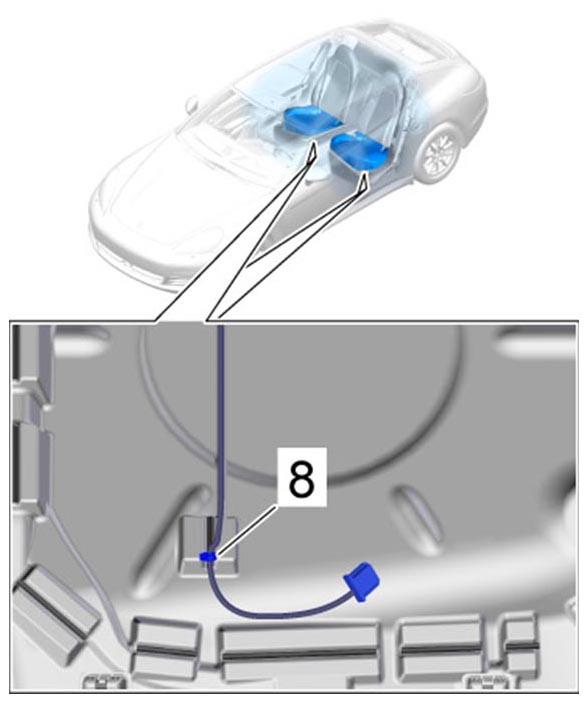

   3. 2.1.3. Cut tie-wraps -8-  .
      Fig 9: Cutting Tie-Wraps

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

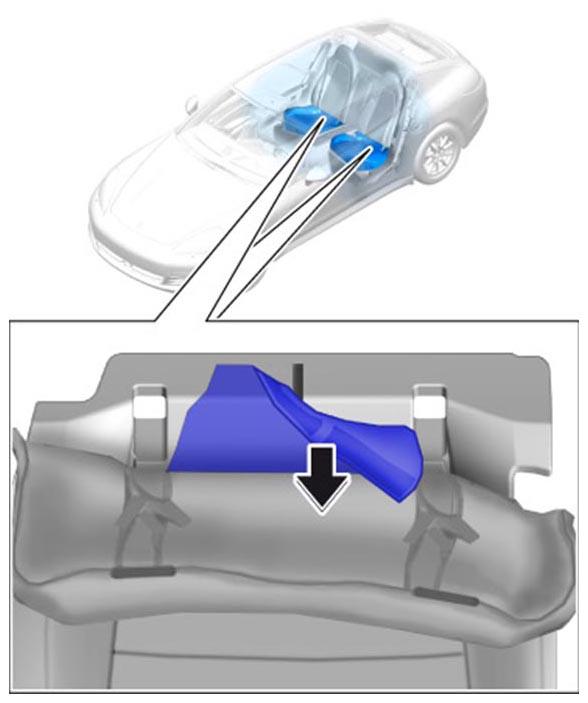

   4. 2.1.4. Pull material cover with heating elements off the cushion.
      Fig 10: Pulling Material Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. For seats with seat heating and air conditioning:
   1. 2.2.1. Disconnect electric plug connections for the heating elements in the side bolsters.
      Fig 11: Disconnecting Plug Connections In Side Bolsters

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 2.2.2. Guide electric lines through the side bolsters at the left and right.
      Fig 12: Pulling Electric Lines

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 2.2.3. Cut tie-wraps -8-  .
      Fig 13: Cutting Tie-Wraps

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

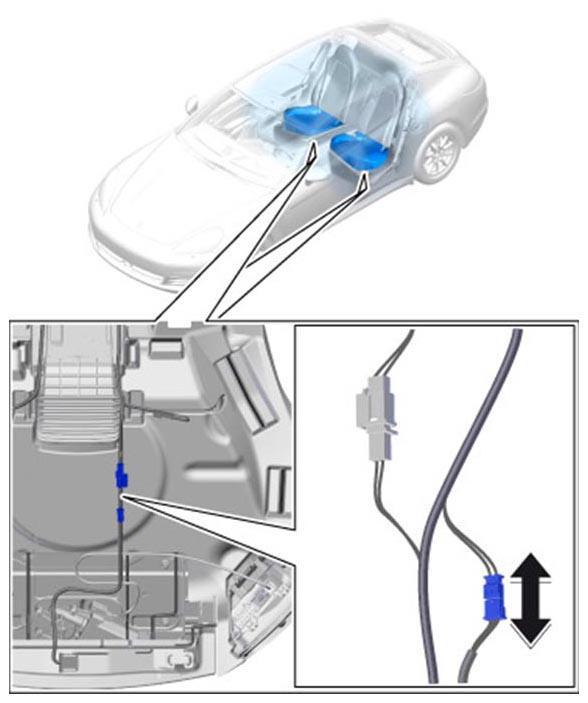

   4. 2.2.4. Disconnect electric plug connection for heating elements for the lower leg support.
      Fig 14: Disconnecting Electric Plug Connection

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

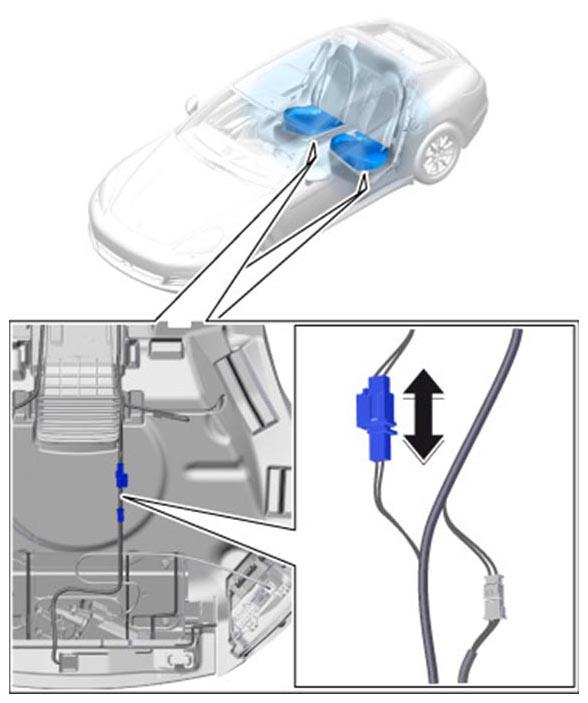

   5. 2.2.5. Disconnect electric plug connection for the suction fan.
      Fig 15: Disconnecting Suction Fan Electric Plug Connection

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   6. 2.2.6. Pull off material cover and electric line.
      Fig 16: Pulling Material Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The cushion clips at the edge of the seat surfaces are made of metal and will be cut using side cutters.

The cushion clips at the center of the seat surface are made of plastic and will be disengaged.

1. 3.1. For seats with and without seat heating:
   1. 3.1.1. Cut the metal cushion clips at the edge of the seat surface using side cutters.
      Fig 17: Pulling Cushion Clips

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 3.1.2. Disengage the plastic cushion clips at the center of the seat surface.

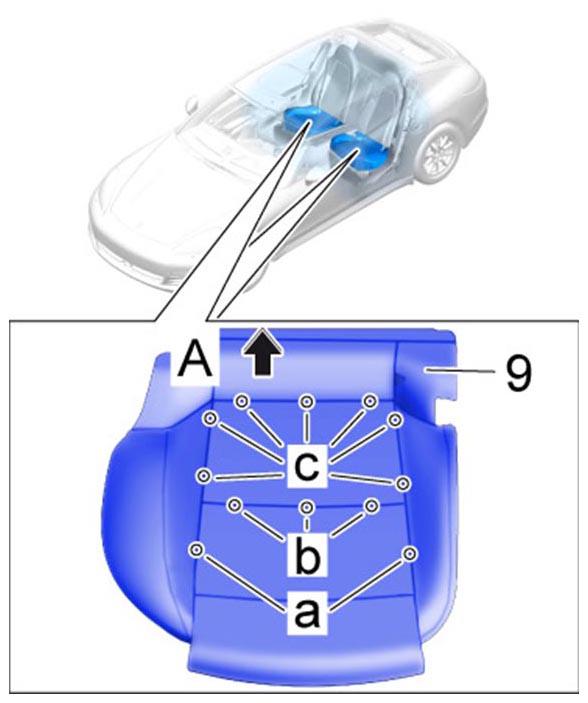

   3. 3.1.3. Remove cover -9-  from the padding -arrow A-  .
   4. 3.1.4. Remove remaining pieces of metal cushion clips.
2. 3.2. For seats with seat heating and air conditioning:
   1. 3.2.1. Cut the metal cushion clips at the edge of the seat surface using side cutters.
      Fig 18: Pulling Air Conditioning Cushion Clips

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 3.2.2. Disengage the plastic cushion clips at the center of the seat surface.

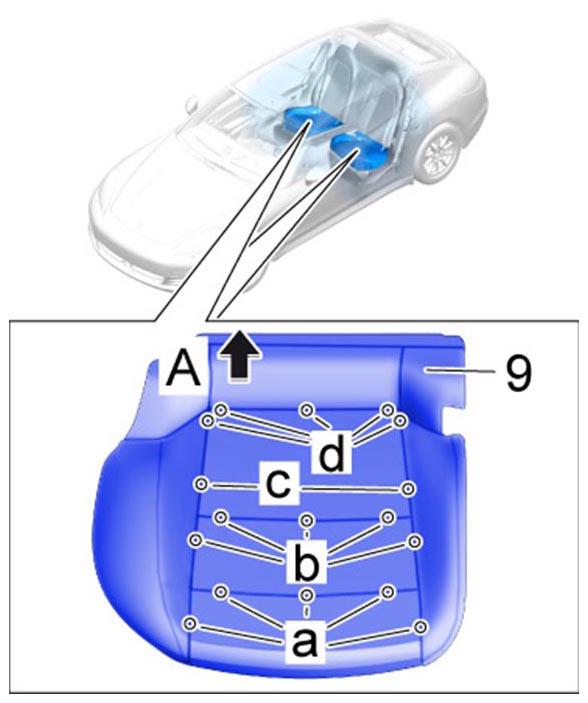

   3. 3.2.3. Remove cover -9-  from the padding -arrow A-  .
   4. 3.2.4. Remove remaining pieces of metal cushion clips.
