Removing Rear Lumbar Support

  1. Remove foam part from the backrest frame.
  2. Remove motor for lumbar support. → Removing Motor For Rear Lumbar Support
  3. Unclip fixing clips -1-  .
  4. Swivel lumbar support -2-  out to the side -arrow A-  .

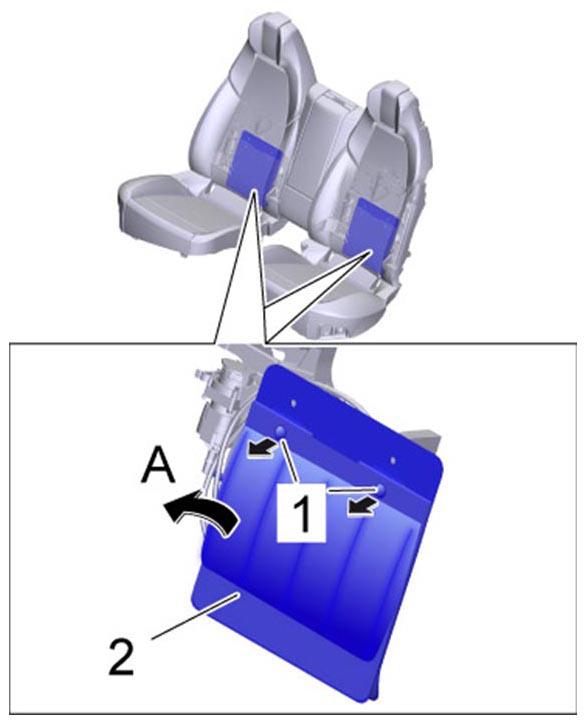

    Fig 1: Unclipping Fixing Clips
    G09812667Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Disconnect electric plug connection.
  6. Remove lumbar support complete with the valve -3-  .

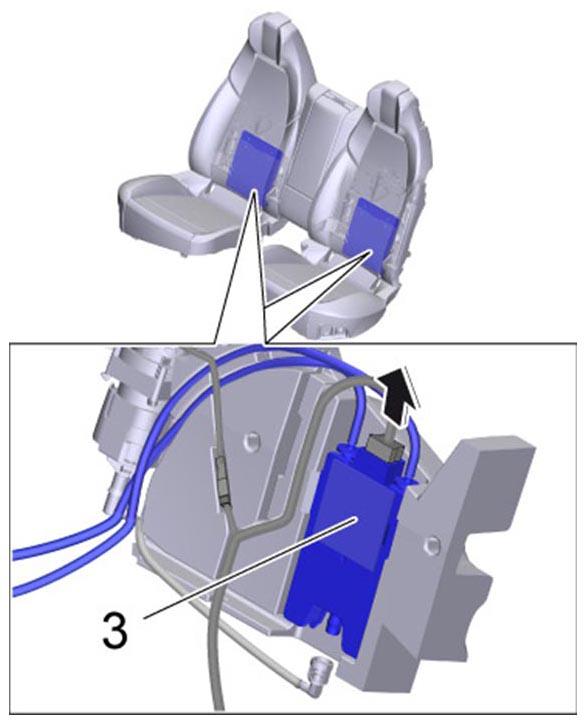

    7. Fig 2: Disconnecting Electric Plug Connection
    G09812668Courtesy of PORSCHE CARS NORTH AMERICA, INC.
