Removing Control Valve For Backrest Air Cushion (Vehicles Without Equipment Variant Folding Tables In The Rear)

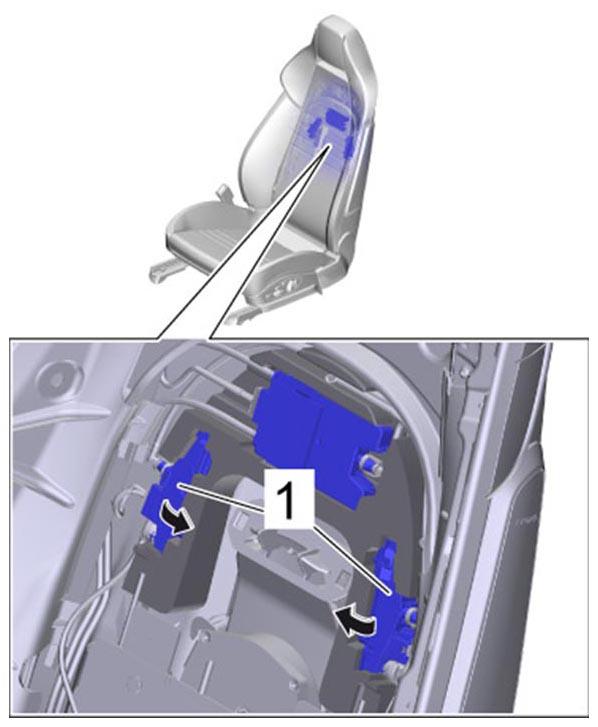

  1. Remove control valve for air cushion -1-  at the left and right from the guide -arrow-  .
    Fig 1: Identifying Control Valves For Air Cushion At Left And Right
    G09812601Courtesy of PORSCHE CARS NORTH AMERICA, INC.

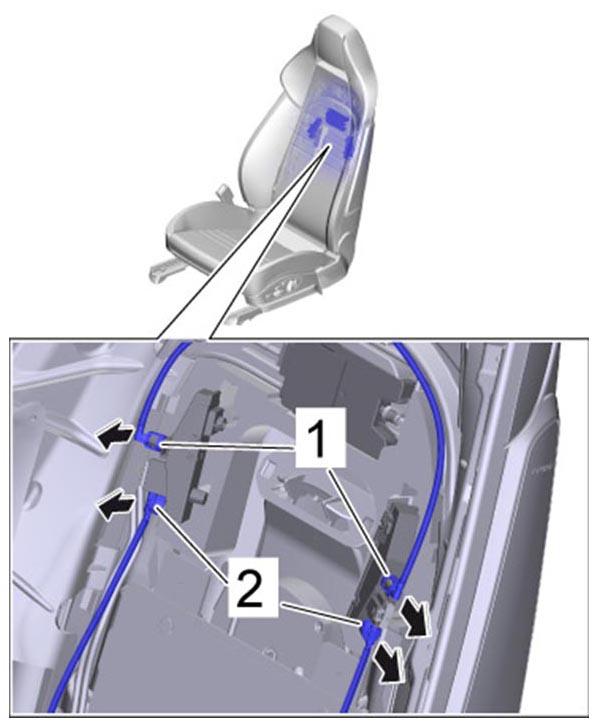

  2. Disconnect pressure line -1 and 2-  from the air cushion control valve -arrow-  .
    Fig 2: Disconnecting Pressure Line
    G09812602Courtesy of PORSCHE CARS NORTH AMERICA, INC.

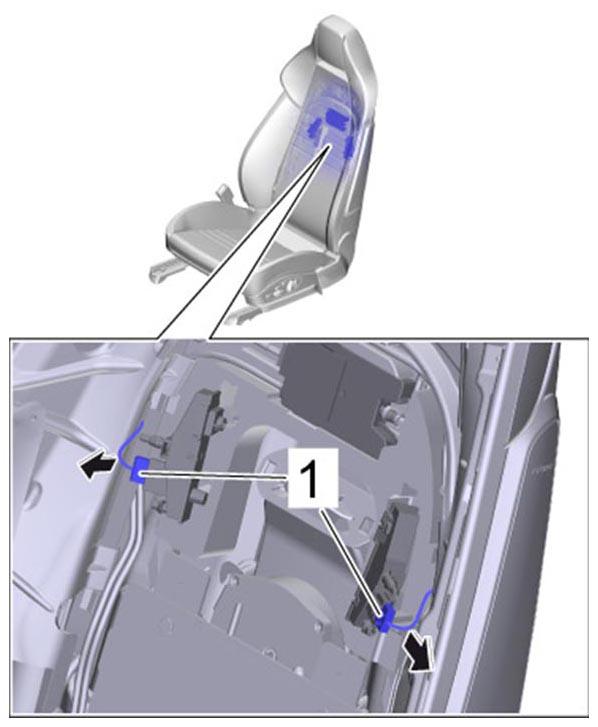

  3. Release electric plug connection -1-  and disconnect it -arrow-  .
    Fig 3: Disconnecting Connector
    G09812603Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove control valve for air cushion.
