Removing Ignition Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

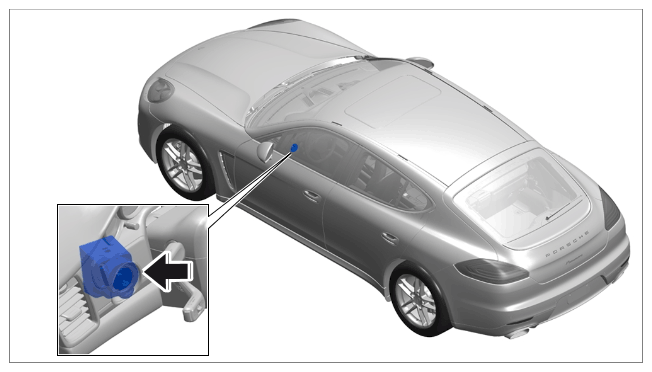

Installation position of ignition starter switch

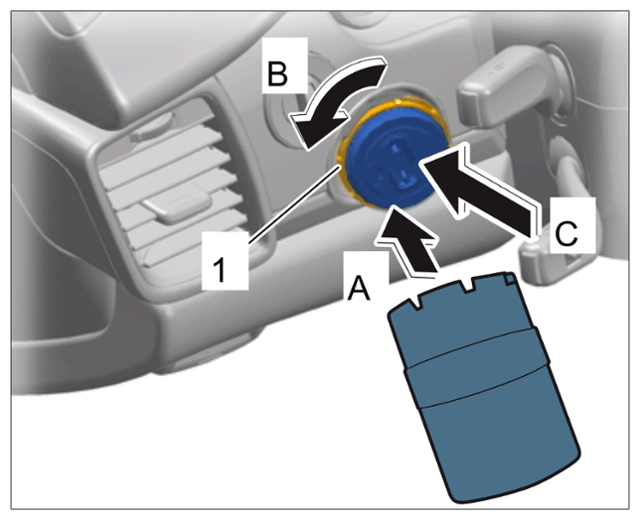

1. Loosen union nut -1-  using special tool > 9800 - key-A-  and unscrew it from the ignition starter switch -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing union nut from ignition starter switch

2. Press ignition starter switch inwards -C-  and remove in a downward direction.

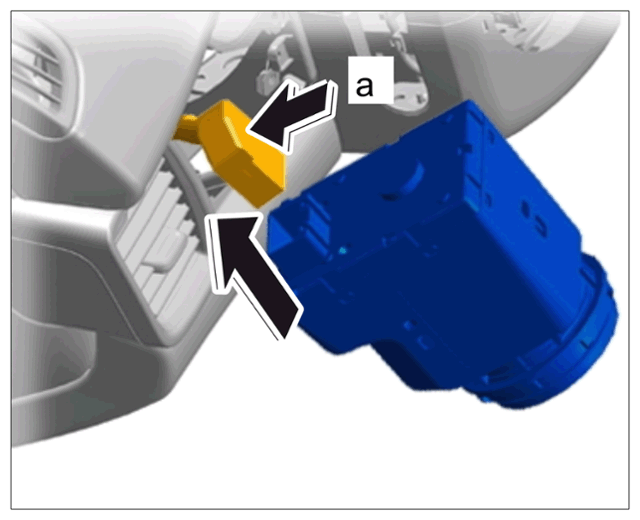

3. Release electric plug connection -a-  and pull it off the ignition starter switch.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and pulling off electric plug connection
