Removing Coolant Reservoir
WARNING: This page is about a different variant/trim than selected.
- Remove connections and reservoir screws.

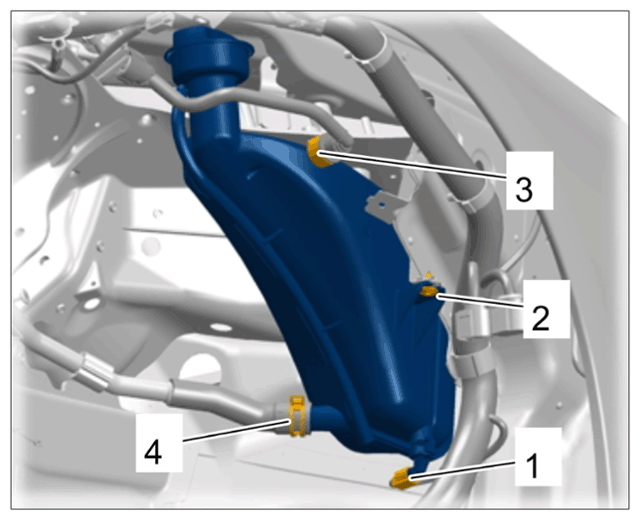

Component overview of coolant reservoir
Release and disconnect electric plug connection for the water level sensor
WARNING: Hot fluid- Danger of scalding
→ Avoid contact with hot fluid.
→ Wear personal protective gear.
Information
After pulling off the hoses, close off all openings immediately using commercially available rubber stoppers.
When fitting parts, do not remove stoppers until shortly before installation.
Remove coolant hose -4- .
Release and pull off vent line -3- .
Remove fastening screw -2- .
- Danger of scalding

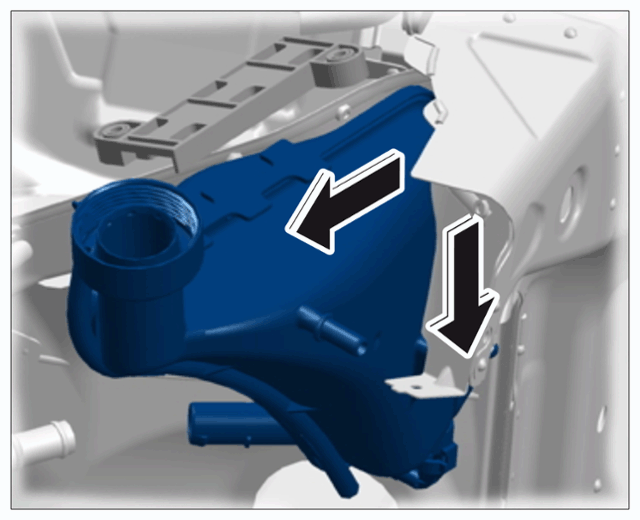

- Pull reservoir forward out of the guide and remove it in a downward direction -direction of arrow-
.
Coolant reservoir guide
