Removing Balance Shaft

Lock the balance weight -1- at the rear of the engine with locating pins T40116 .
Unscrew screw -2- and remove balance weight from the balance shaft.

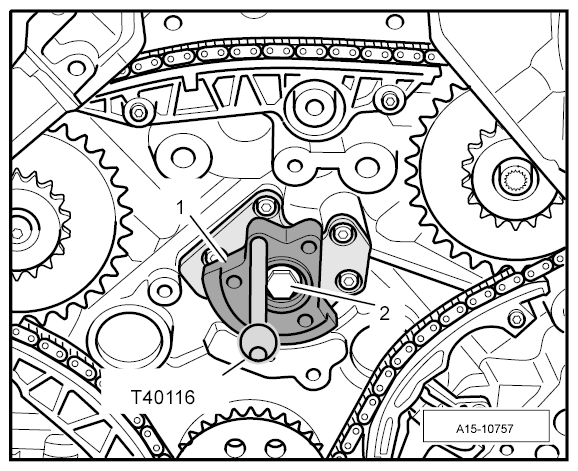

Fig 1: Identifying Balance Weight And Mounting Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew screw -2- while countering the balance weight with a mandrel and remove the balance weight -1- at the front of the engine from the balance shaft.

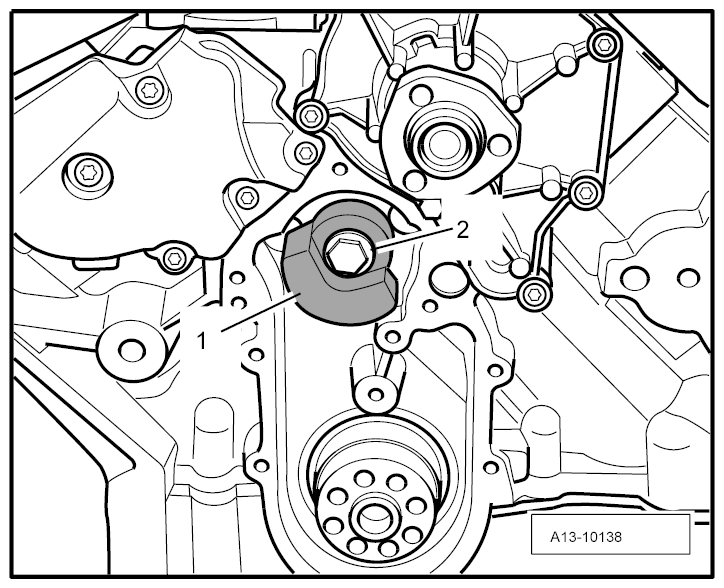

Fig 2: Identifying Balance Weight
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew screws -arrows- and remove end plate for the balance shaft at the rear of the engine.
Pull the balance shaft to the rear and out of the cylinder block.

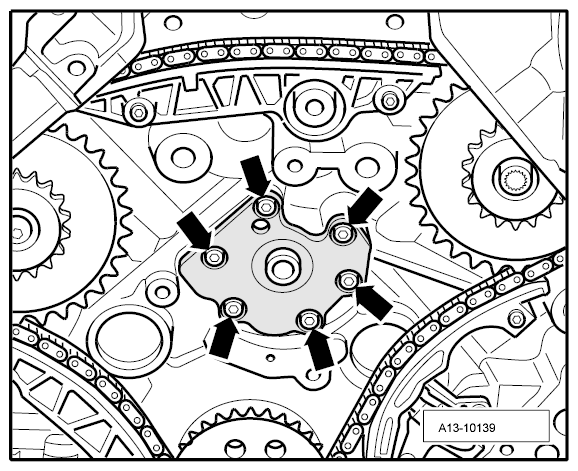

Fig 3: Locating Balance Shaft End Plate Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
