Adapter Cable 9257/4

  1. Purple marking on the connector - adapter for knee airbag
  2. Marking A - adapter for 1st stage of driver's airbag unit
  3. Marking B - adapter for 2nd stage of driver's airbag unit
  4. Green marking on the connector - adapter not required
  5. Adapter for ignition device

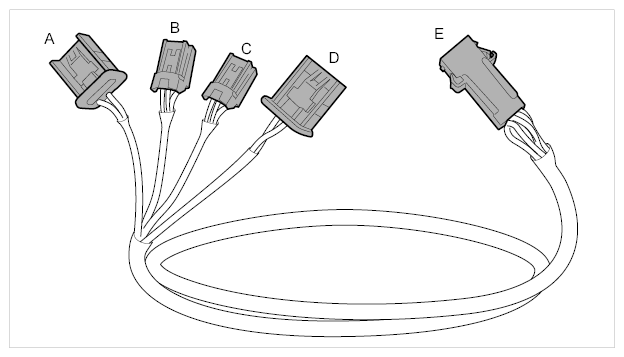

    6. Fig 1: Identifying Adapter Cable (9257/4)
    G09810584Courtesy of PORSCHE CARS NORTH AMERICA, INC.
