Installing engine compartment light

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

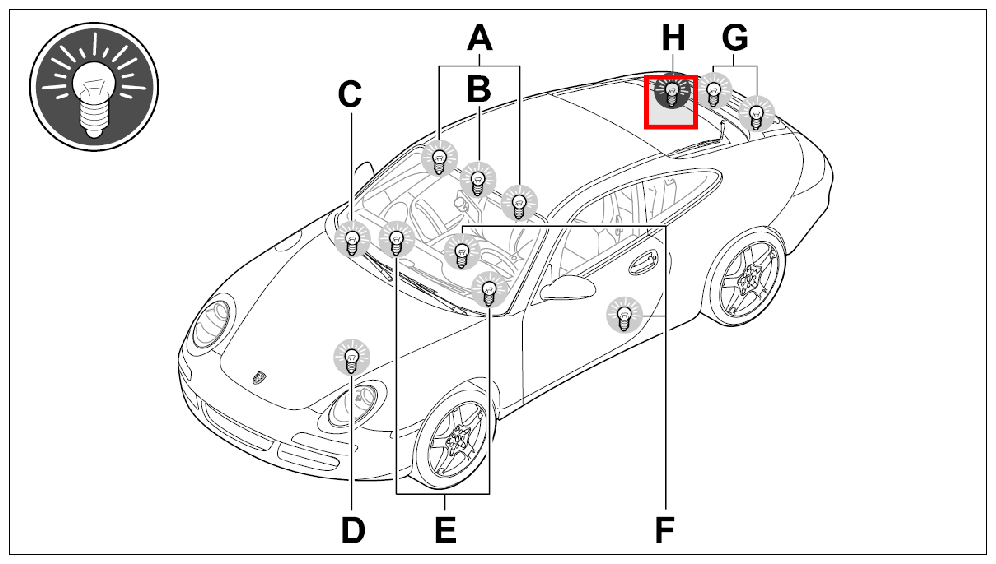

Fig 1: Identifying Engine Compartment Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

H - Engine compartment light

Attach plug on engine compartment light.

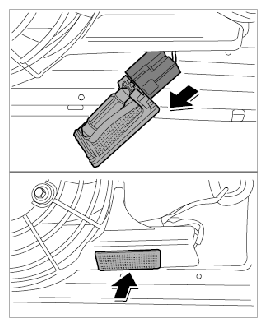

Fig 2: Installing Engine Compartment Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press engine compartment light into the blower motor housing.
Engage wiring harness on blower motor housing.

Fig 3: Installing Wiring Harness On Blower Motor Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
