Removing Gas-Discharge Headlight

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the connector for the gas-discharge headlight anti-clockwise (bayonet lock) and pull it off.

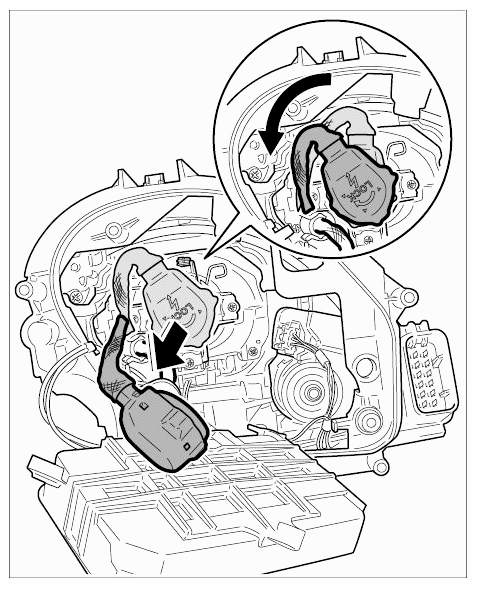

    Fig 1: Releasing Gas-Discharge Headlight Connector
    G09593541Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Disengage both retaining brackets and pull out the lamp.

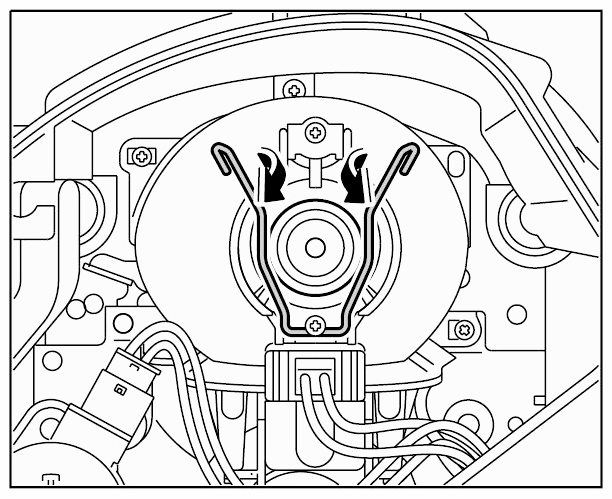

    Fig 2: Disengaging Retaining Brackets
    G09593542Courtesy of PORSCHE CARS NORTH AMERICA, INC.
