Installing Wheel

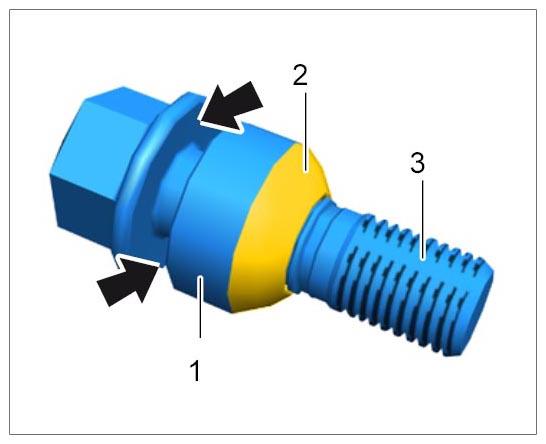

  1. In the event of heavy soiling, clean the wheel bolts and the concavities in the wheel with a lint-free cloth.

    The wheel bolts/security wheel bolts (thread and all surfaces) must not  be greased.

    Fig 1: Locating Wheel Bolt
    G10025516Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. The contact surfaces of the wheel on the wheel hub and brake disc must be clean. Clean them if necessary.

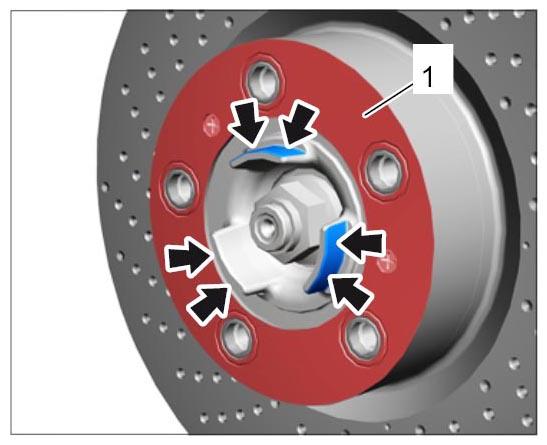

    Re-grease or grease the wheel centering surface on the wheel hub (blue areas) -arrows-  with a very thin coat of Optimoly TA (aluminium paste).

    The wheel contact surface on the brake disc (red area) -1-  and on the wheel itself must not  be greased (greasing is not permitted).

    ONLY the areas marked in blue -arrows-  may be greased.

    Fig 2: Locating Wheel Centering Surface
    G10025517Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit the wheel.

    Never use an impact bolter to tighten the wheel bolts!

    Fig 3: Identifying Fitting Wheel Threaded Pins
    G10025518Courtesy of PORSCHE CARS NORTH AMERICA, INC.

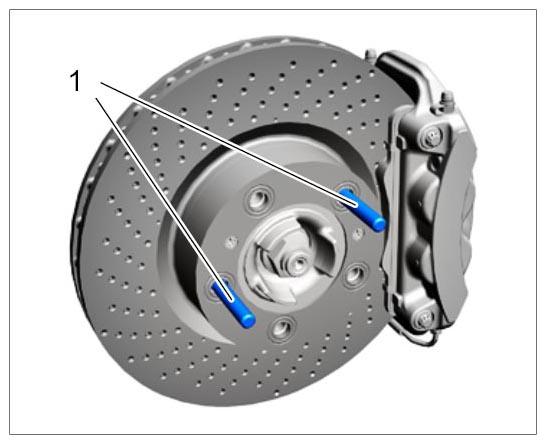

    1. 3.1. On vehicles with PCCB, screw the assembly aids -1-  into two threaded holes that are not next to each other before fitting the wheel.
    2. 3.2. Carefully push the wheel over the assembly aids -1-  .
    3. 3.3. Screw the other wheel fastening bolts into the remaining threaded holes.
    4. 3.4. Replace the assembly aids -1-  with wheel fastening bolts.
    5. 3.5. Fit and tighten the wheel fastening bolts evenly. Start at the top when tightening.
  4. Tighten the wheel fastening bolts to → Tightening torque: 160 Nm (118 ftlb.)  .
