Home >> Porsche >> 2014 >> Cayman Base, Automatic DCT Trans >> Repair and Diagnosis >> Suspension >> Rear Suspension >> 44 - Wheels, Tires, Suspension Alignment -- (981) BOXSTER/CAYMAN >> WM 443819 Removing And Installing TPM Antenna (All Models) >> Preliminary Work >> Preliminary Work At Front Left

Preliminary Work At Front Left

  1. Remove wheel. → 440519 REMOVING AND INSTALLING WHEEL .
  2. Remove rear part of front wheel housing liner. → 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER .
  3. Disconnect water line for headlight cleaning system from the headlight cleaning system pump -A-  and unclip the water line -arrows-  .

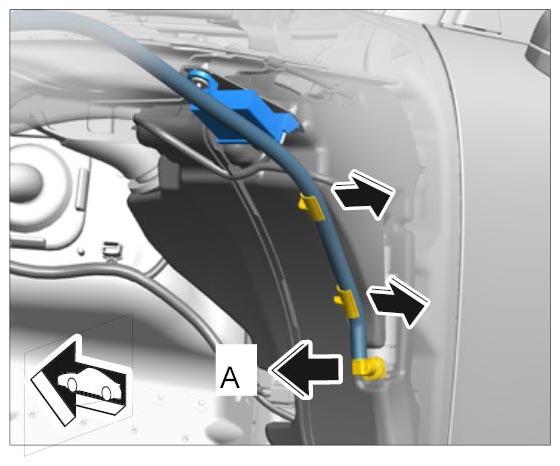

    Fig 1: Disconnecting Water Line For Headlight Cleaning System
    G10025540Courtesy of PORSCHE CARS NORTH AMERICA, INC.
