Removing Tire Pressure Monitoring System (TPM) Control Unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

1. Release -a-  and disconnect plug connection -A-  .

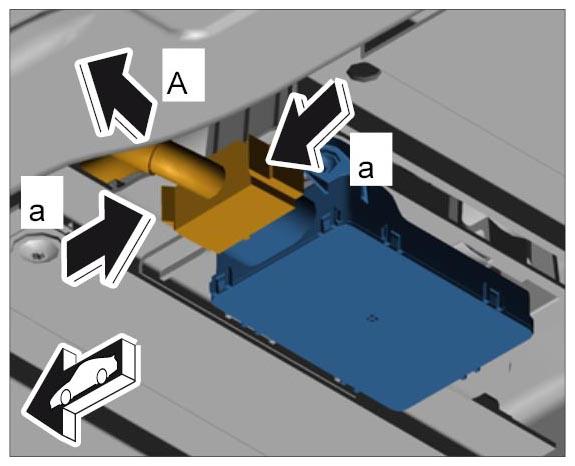

   Fig 1: Disconnecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove control unit for Tire Pressure Monitoring.

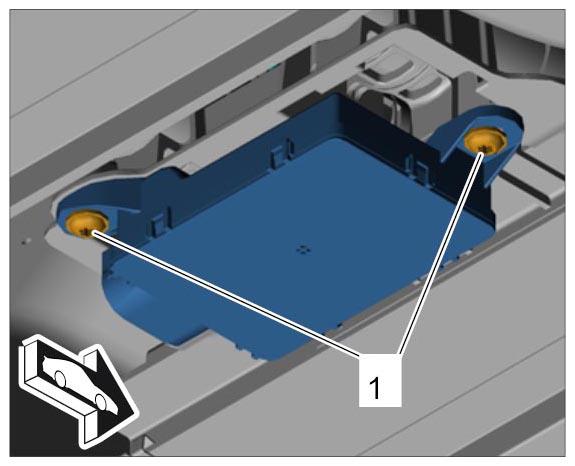

   Fig 2: Identifying Control Unit Mounting Screws For TPM

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Unscrew fastening screws -1-  .
   2. 2.2. Remove control unit for Tire Pressure Monitoring.
