Removing Rear Spoiler (Wing Plates)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

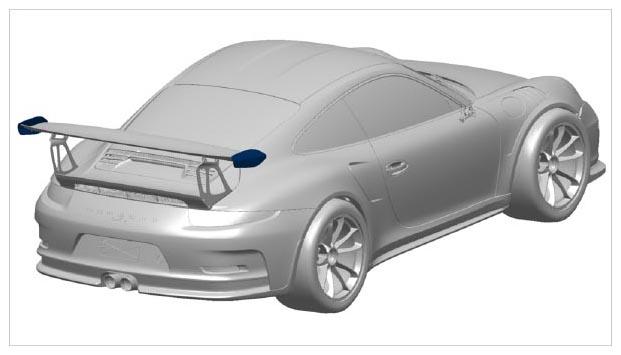

Fig 1: Identifying Rear Spoiler Installation Position (Wing Plates)
G09995060Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove rear spoiler (wing plates).
    1. 1.1. Unscrew fastening screws -1-  .
    2. 1.2. Unclip fixing clips -2-  .
    3. 1.3. Remove wing plates.

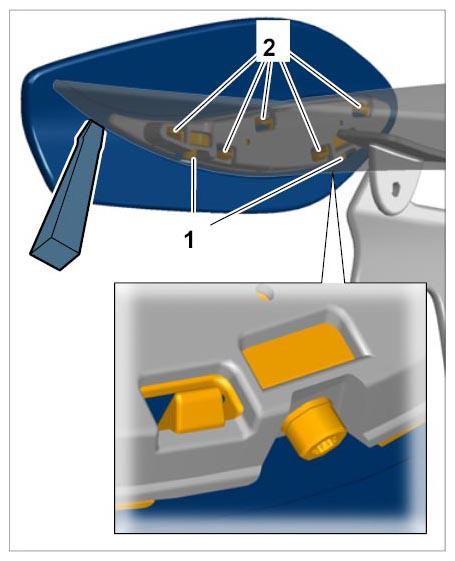

      Fig 2: Identifying Rear Spoiler Fastening Screws (Wing Plate)
      G09995061Courtesy of PORSCHE CARS NORTH AMERICA, INC.
