Installing Rear Wheel Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Carefully clean any dirt, grease, wax and other impurities off the installation area of the body using isopropanol.
Always use a clean cloth.
The room and object temperature must be at least → Nominal value: +15°C.
Humidity should be → Nominal value: 50 %+/-10 %.
Do not touch the bonding surface again after removing the protective paper.
Wear clean gloves during the bonding process in order to guarantee adequate adhesion.
The parts must have been bonded for at least → Nominal value: 72 h before washing the vehicle in a car wash.

Clean the bonding area.
1. 1.1. Wipe off the installation area with a cloth soaked in isopropanol.
Insert a thin strip of cardboard (e.g. a business card) into the gap between the wing and rear apron.

Fig 1: Positioning Wheel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position wheel cover on the wheel arch.
1. 3.1. Position wheel cover at the gap -arrow- between the wing and rear apron until flush and fit at an equal distance -X- along the radius.

  Fig 2: Positioning Wheel Cover (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 3: Positioning Wheel Cover (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove protective film from adhesive tape.

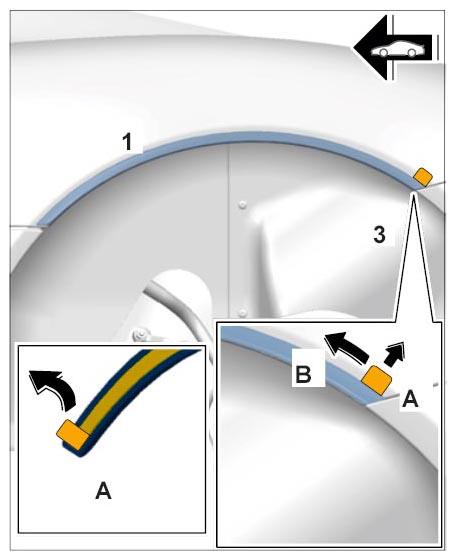

Fig 4: Removing Protective Film From Adhesive Tape
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Remove protective film -arrow A- on the underside of the cover -arrow B- and pull it off along the wheel arch contour.
Press evenly and firmly with your hand on the area of the wheel cover -1- where adhesive is applied -arrow- .

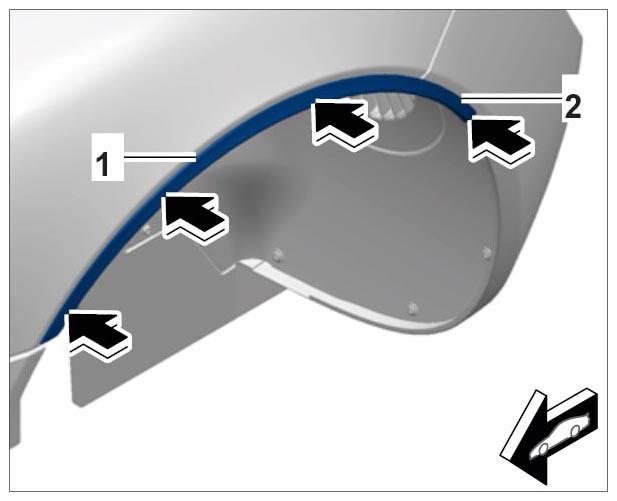

Fig 5: Fitting Wheel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position wheel cover on rear apron.

Fig 6: Fitting Rear Wheel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 6.1. Position wheel cover -2- at the gap -arrow- between the wing and rear apron until flush and fit at an equal distance -X- along the radius.

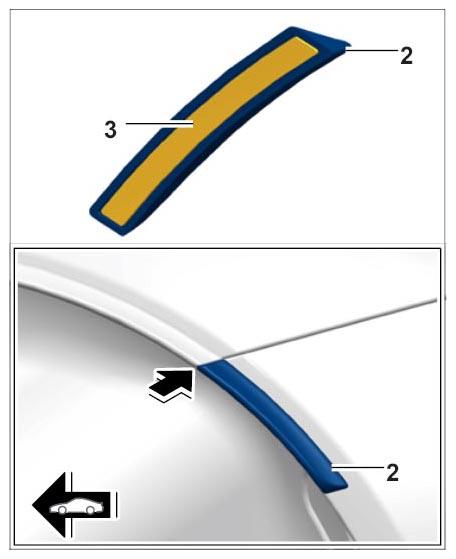

  Fig 7: Positioning Wheel Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove protective film from adhesive tape.
1. 7.1. Remove protective film -3- on the underside of the cover and pull it off along the wheel arch contour.
Press evenly and firmly with your hand on the area of the wheel cover -2- where adhesive is applied -arrow- .

Fig 8: Fitting Wheel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
