Removing Centre Trim Panel For Targa Bar: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Use a marking pen to mark the position of accessories with respect to each other before removal in order to reduce the amount of adjustment work required for gaps and joints.

Information

Cover add-on parts and adjacent areas.

Protect components against scratching and damage.

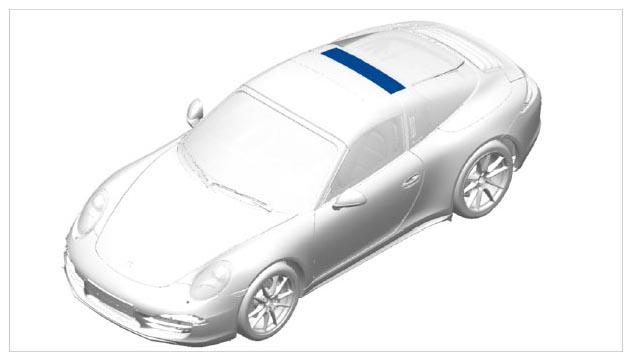

Fig 1: Identifying Centre Targa Bar Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Move convertible top to a suitable position; trim panel flaps must be opened.
1. 1.1. Disengage pull/push cables for the trim panel flaps.
2. 1.2. Move convertible top to its end position.
Remove center trim panel.
1. 2.1. Unscrew and remove fastening screw -2- on center trim panel -1- .
2. 2.2. Pull off water drain hoses -3- at the trim panel on the left and right.
3. 2.3. Unclip center trim panel for Targa bar in an upward direction.

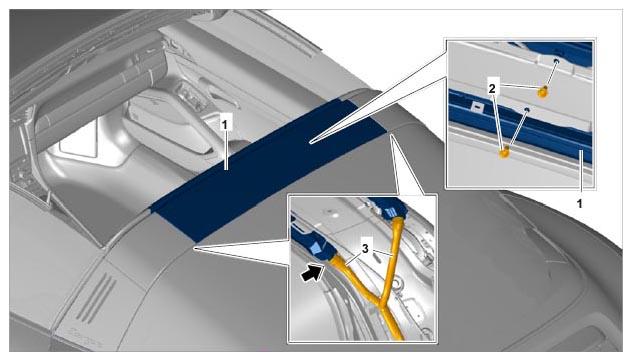

  Fig 2: Identifying Centre Trim Panel Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Swivel center trim panel for Targa bar out between the bodyshell and trim panel flaps.
