Removing Door Entry Guard

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

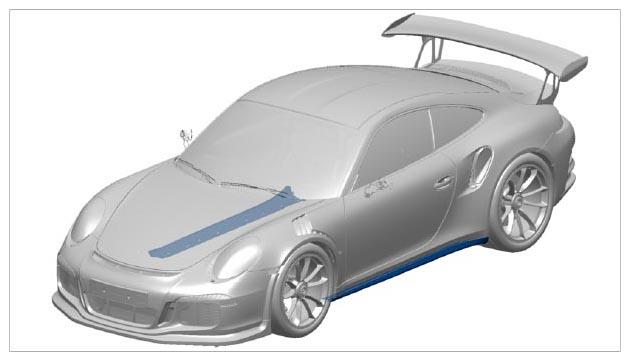

Fig 1: Identifying Door Entry Guard Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew and remove fastening screw -1- on front wheel housing liner.

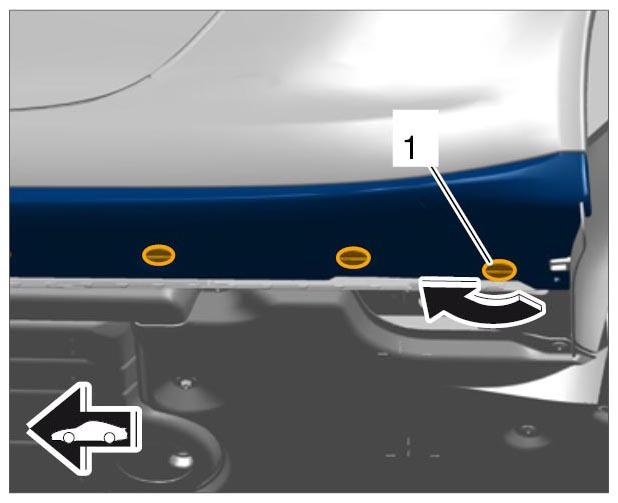

Fig 2: Removing Front Door Entry Guard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and remove fastening screws -1- on the underside.

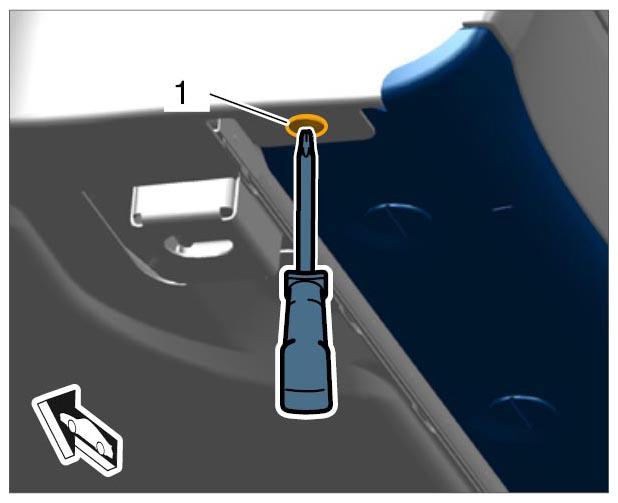

Fig 3: Removing Fastening Screws On Underside
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew and remove rear fastening screw -1- on the underside.

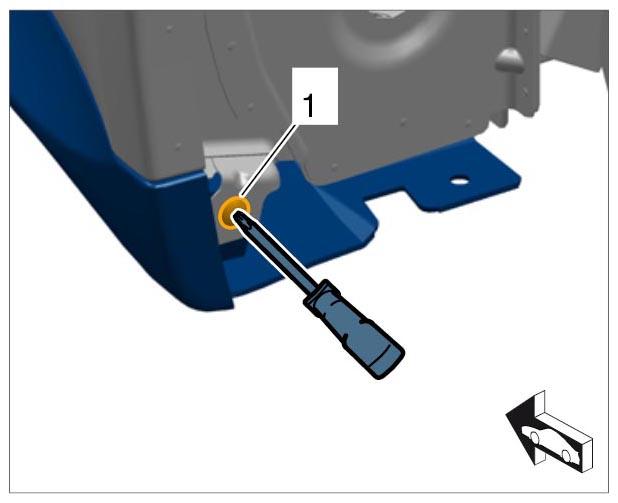

Fig 4: Removing Rear Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew and remove rear fastening screw -1- .

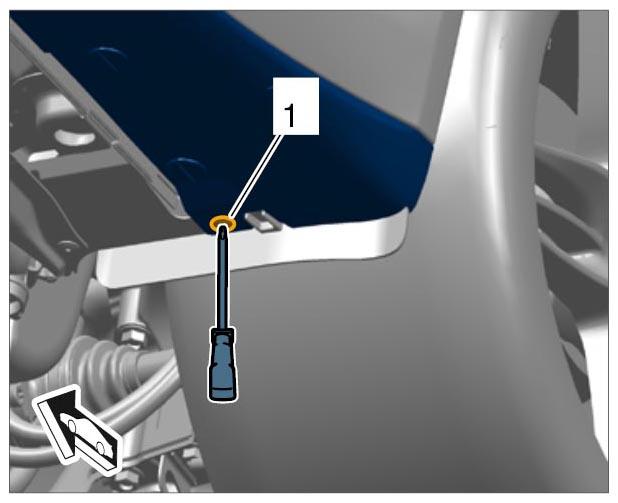

Fig 5: Removing Fastening Screw For Rear Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Starting at the rear, pull door entry guard -1- out of the fixing clips -2- .

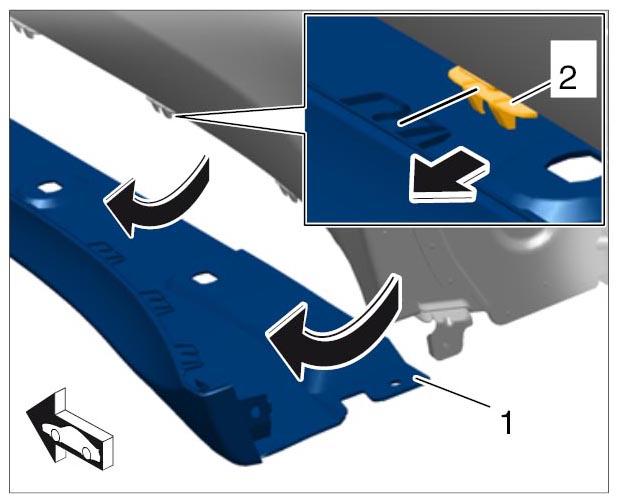

Fig 6: Removing Door Entry Guard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check fixing clip and fastening clamps and replace them if necessary.
