Installing Front Spoiler
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Installation is performed in reverse order to removal.
→ Tightening torque: 2.7 Nm (2 ftlb.)+/-0.2 Nm (+/-0.1 ftlb.)
Installation is performed in reverse order to removal.
→ Tightening torque: 3.2 Nm (2 ftlb.)+/-0.6 Nm (+/-0.5 ftlb.)

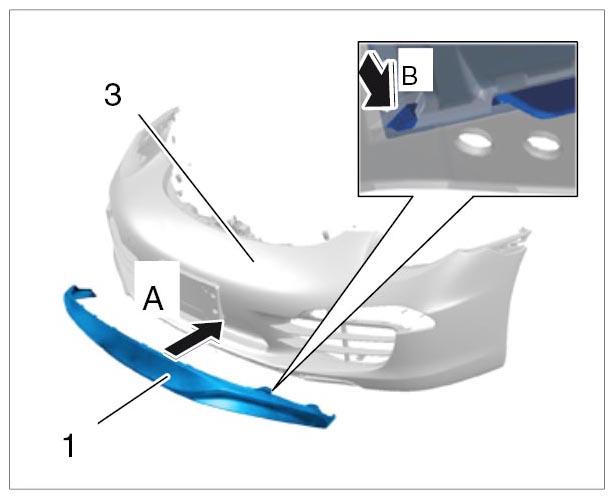

Guide all tabs into the front apron during installation. -arrow A-
Following installation, check that the tabs -arrow B- have engaged correctly.
