Removing Engine Carrier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Component overview of engine carrier - Carrera:

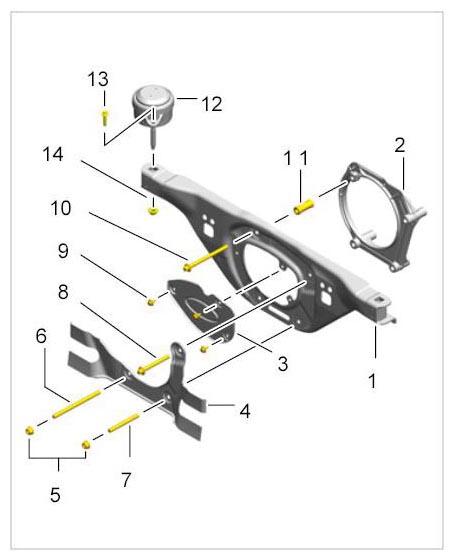

Fig 1: Overview Of Engine Carrier
G09990452Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Engine carrier
  2. Intermediate flange
  3. Heat shield
  4. Bracket for front silencer
  5. Collar nuts, M10
  6. Stud, M10 x 140
  7. Stud, M10 x 80
  8. Hexagon-head bolt, M10 x 92
  9. Hexagon-head bolt, M6 x 16
  10. Hexagon-head bolt, M10 x 135
  11. Spacer sleeve
  12. Engine mounting
  13. Torx screw, M8 x 35, for active engine mountings: M8 x 65
  14. Collar nut, M12

Engine carrier for some GT3 vehicles without heat shield:

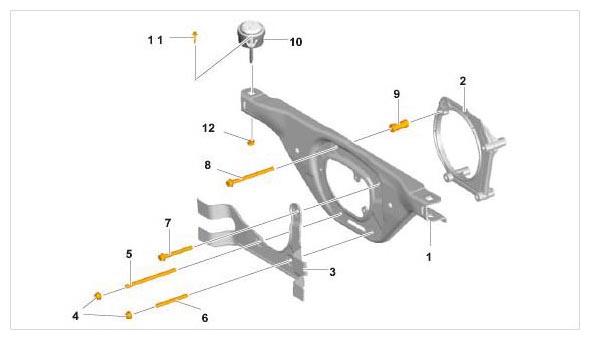

Fig 2: Overview Of Engine Carrier - GT3
G09990453Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Engine carrier
  2. Intermediate flange
  3. Rear silencer (muffler) holder
  4. Collar nuts, M10
  5. Stud, M10 x 140
  6. Stud, M10 x 80
  7. Hexagon-head bolt, M10 x 92
  8. Hexagon-head bolt, M10 x 135
  9. Spacer sleeve
  10. Active engine mount
  11. External Torx screw, M8 x 65
  12. Collar nut, M12
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Information

  1. Support engine with transmission and unit jack Junior Jack 2.0 WE 1223  and GA passenger car transmission plate WE 1224  at the oil pan.
    1. 1.1. When positioning, pay attention to the oil level sensor.
  2. Loosen and unscrew two M12 collar nuts -1-  on the engine mounting.

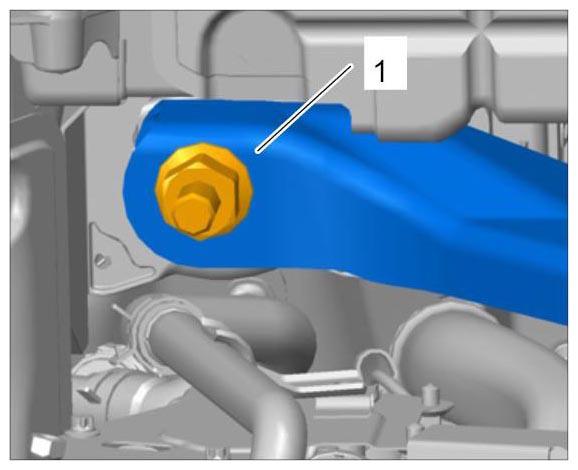

    Fig 3: Identifying Engine Carrier Mounting
    G09990454Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove heat shield.

    Also for some GT3 vehicles!

    1. 3.1. Unscrew three hexagon-head bolts (M6 x 16) and remove heat shield.
  4. 3.8-litre engine only:  Unclip vacuum hose at three places on the engine carrier.
  5. Remove engine carrier.
    1. 5.1. Remove hexagon-head bolt (M10 x 135) through the bore in the rear cross member. Be careful with the sleeve in the engine compartment.
    2. 5.2. Loosen and unscrew two M10 collar nuts.

    Information

    • When lowering, the engine must not rest on the rear axle cross member.
  6. Carefully lower the engine.
    1. 6.1. Loosen and unscrew M10 x 92 hexagon-head bolt.
    2. 6.2. Guide engine carrier with front silencer bracket out of the threaded bolts and remove both parts.
    3. 6.3. The intermediate flange can remain on the threaded bolts.
  7. Clean engine carrier carefully with solvent naphtha and check for damage (e.g. cracks, deformation).
  8. The engine carrier must be replaced if it is damaged.
