Installing Main Headlight

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Risk of damage to headlights due to chafing and excessive temperatures.

Headlights must not be covered when they are switched on, e.g. by wing protector or film.

Switch off ignition.

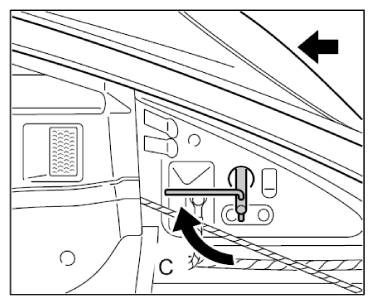

Insert headlight into guide rails and push fully home into wing -arrow- .
Press the headlight to the rear, turning the socket wrench at the same time until the wrench points horizontally to the rear -arrow C- . In the process, the headlight lock must engage with an audible and perceptible click.

Fig 1: Inserting Headlight Into Guide Rails

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check the correct seating of the headlight, e.g. by pulling gently in the area of the fog light.

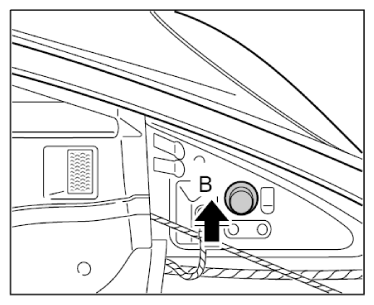

Insert rubber stopper -B- in the release opening.

Fig 2: Locating Rubber Stopper

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

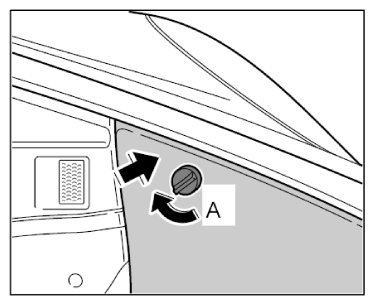

Screw the carpeting at the side tight with the plastic screw -A- .

Fig 3: Locating Fastening Carpet At Sides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
