Installing Front Spring Strut: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Check the various parts visually before installation.
Use new lock nuts and brake calliper fastening screws.
Observe correct tightening torques → 4001TW TIGHTENING TORQUES FOR FRONT AXLE .
Tie-rod end taper must be free of grease.
Counter with a screwdriver 9546 when tightening the lock nuts on the toe control arm.
- Before assembling the spring strut and wheel carrier/trailing arm, check the adjustment dimension -B-
(spring strut position in wheel carrier) and adjust it according to the required value if necessary. Use special tool hook wrench 9647
for this purpose.
Required dimension -B- = 196 mm (plus/minus 1.0 mm).
- Insert spring strut as far as it will go into the wheel carrier. Tighten the new lock nuts (for screw and suspension/stabilizer) -arrows- to the prescribed tightening torque → 4001TW TIGHTENING TORQUES FOR FRONT AXLE .
- Fit the spring strut/wheel carrier/trailing arm assembly into the vehicle. Get a second person to help with this step.

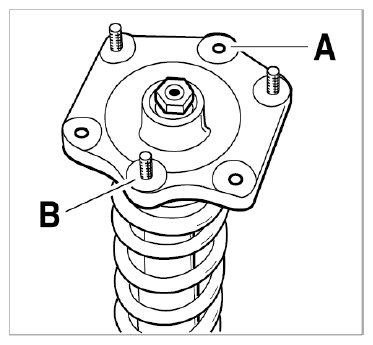

- Note the installation position of the spring strut mount.
- -A- = vehicle outer side/-B- = vehicle inner side.
- The damper piston rod is thereby shifted outwards.
- The three unused bores in the spring strut mount are intended only for driving on racing circuits. The three fastening bolts (M8) are fitted in these holes in this case. This increases negative camber.
- Vehicle outer side
- Vehicle inner side

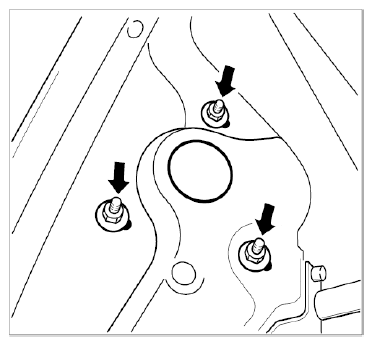

- Align spring strut mount according to the relevant marking (position of the three collar nuts). Tighten the new lock nuts -arrows- to the specified torque at this position.
- Fit the trailing arm fastening screw -4-
. Tighten in vehicle position only! Vehicle position means: vehicle standing on the wheels or wheel suspension is raised to the relevant height with a universal lift.

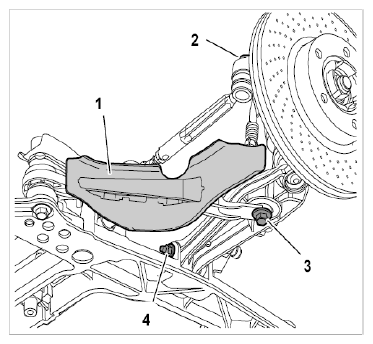

Fit tie-rod end on wheel carrier -2- , diagonal arm on trailing arm (at correct position) -3- and then fit control arm spoiler -1- .
Observe installation position of control arm mount on the diagonal arm -3- . The diagonal arm must be fitted at the center bore on the trailing arm (see Fig 5 below).
