WM 408519 Removing And Installing Front Spring Strut (All Models): Information

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

The spring strut -1- is removed together with the wheel carrier -2- and the front-axle control arm -3- . The spring strut -1- is then removed (separated) from the wheel carrier -2- .

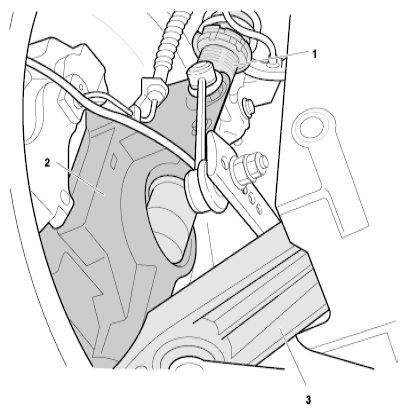

Fig 1: Identifying Front Spring Strut Assembly

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
