Installing Front Axle
- Hexagon-head bolt for steering gear, M10
- Hexagon-head bolt for front axle, M12 x 1.5 x 30, tightening torque: 100 Nm (74 ftlb.)
- Hexagon-head bolt for front axle, M14 x 1.5 x 120, tightening torque: 160 Nm (118 ftlb.)
- Hexagon-head bolt for front axle, M14 x 1.5 x 50, tightening torque: 160 Nm (118 ftlb.)
- Hexagon-head bolt for front axle, M14 x 1.5 x 50, tightening torque: 160 Nm (118 ftlb.)
- Hexagon-head bolt for coolant pipe, M6
- Hexagon-head bolt for coolant pipe, M6
- Holder for coolant pipe
Replace all lock nuts. Replace screw(s) securing universal joint (steering shaft) to steering gear and brake calliper to wheel carrier.
- Install front axle.
- 1.1. Raise the front axle with the spring strut at the left and right and position it.

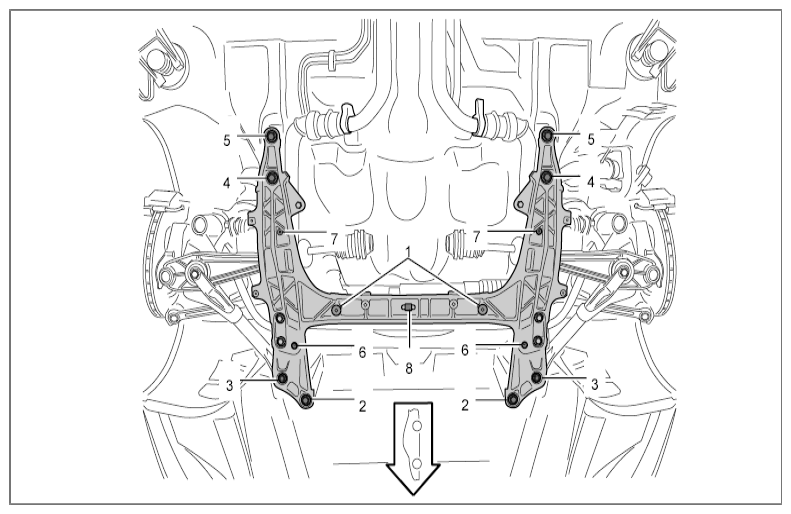

- 1.2. Screw in and tighten screws securing front axle to body -1 and 2-
. Screws -1-
= rear: M14 x 1.5 x 50/front: M14 x 1.5 x 120. Screws -2-
= M12 x 1.5 x 30.
→ Tightening torque, M14 front: 160 Nm (118 ftlb.)
→ Tightening torque, M14 rear: 160 Nm (118 ftlb.)
→ Tightening torque, M12: 100 Nm (74 ftlb.)

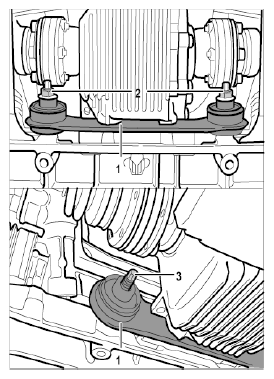

- 1.3. Screw in and tighten stud -3-
on transmission support -1-
.
→ Tightening torque: 20 Nm (15 ftlb.)
- 1.4. Screw on and tighten nuts -2-
on transmission support -1-
.
→ Tightening torque: 65 Nm (48 ftlb.)
- Tighten spring struts at the spring-strut dome.

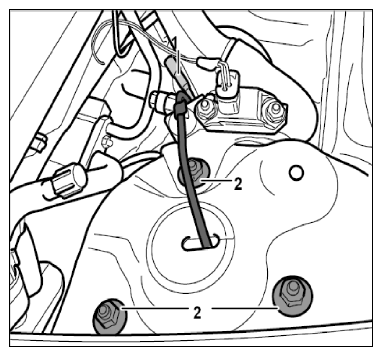

- 2.1. Secure spring struts at the spring-strut dome by screwing on and tightening the nuts -2-
.
→ Tightening torque: 33 Nm (24 ftlb.)
- 2.2. Connect cable plug -1- for the PASM line.
- 2.3. Secure trim panel in the luggage compartment.
- 2.1. Secure spring struts at the spring-strut dome by screwing on and tightening the nuts -2-
.
- Connect coolant hoses.
Information
- The coolant hoses must lock with an audible click when pushed into the plug-in couplings.
Information
- Check O-rings on the plug-in couplings and replace them if necessary.
- Clean plug connection and coolant hoses before assembly.
- Coat O-rings and coolant hoses with Kluber Plus Gel (Part No. 000.043.205.93).
- Remove stoppers before fitting the coolant lines and hoses.

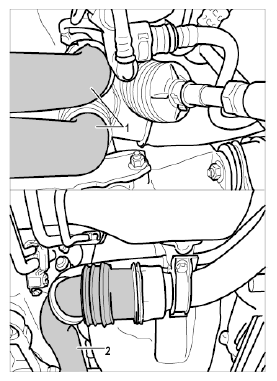

- 3.1. Connect coolant hoses at the front.
Press on coolant hoses -1- until the spring clamps on the Henn couplings lock with an audible click.
- 3.2. Connect coolant hose at the rear.
Press on coolant hose -2- until the spring clamp on the Henn coupling locks with an audible click.
- Fit pressure and return lines at the steering gear.
- 4.1. Insert pressure and return lines with new sealing rings into the steering gear.

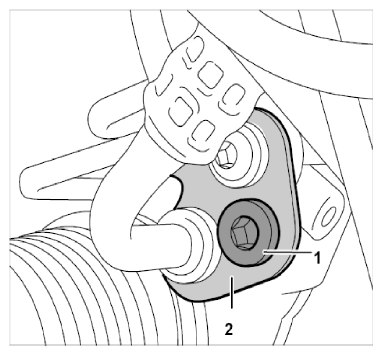

- 4.2. Fit tension shackle -2-
for pressure and return lines at the steering gear by inserting the tension shackle -2-
and screwing in and tightening the screw -1-
.
→ Tightening torque: 23 Nm (17 ftlb.)
- Fit universal joint at the steering spindle. Use new fastening screw!

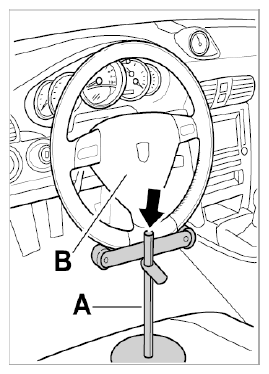

- 5.1. Steering wheel must be in center position.
- 5.2. Fit universal joint on the steering spindle.
Fit universal joint on the steering spindle while paying attention to the installation position -see arrows- .

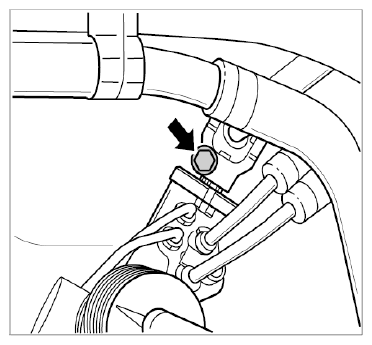

- 5.3. Screw in and tighten M8 screw -arrow-
on the universal joint.
→ Tightening torque: 23 Nm (17 ftlb.)
- For all-wheel drive vehicles: Fit the drive shafts on the transmission side.

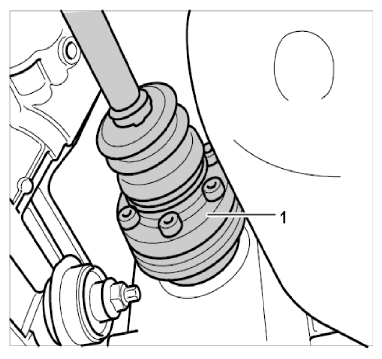

Fit drive shafts -1- at the front by screwing in and tightening the screws.
→ Tightening torque: 39 Nm (29 ftlb.)

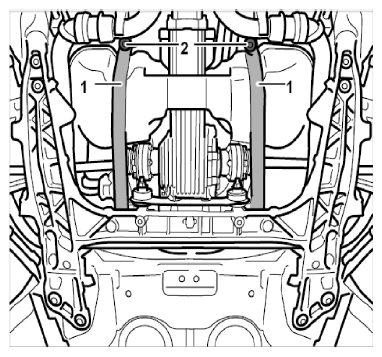

- Fit restraining straps on the fuel tank.
Fit restraining straps -1- and screw in and tighten screws -2- .
→ Tightening torque: 23 Nm (17 ftlb.)
- Install diagonal braces and crash stop.

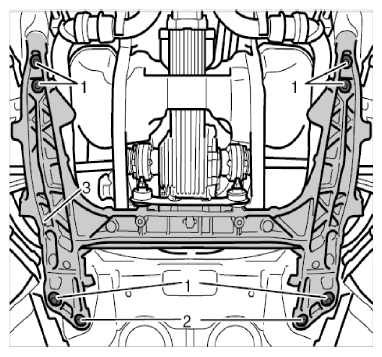

- 8.1. Install crash stop -3-
(all-wheel drive only).
Fit crash stop -3- and screw in and tighten screws -4- .
→ Tightening torque: 100 Nm (74 ftlb.)

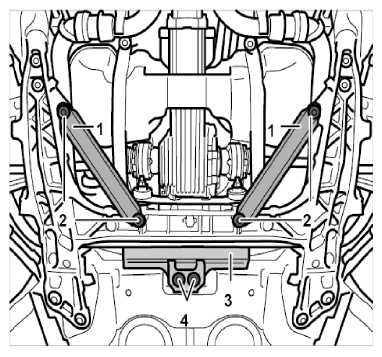

- 8.2. Install diagonal braces -1-
.
Fit diagonal braces -1- and screw in and tighten screws -2- .
→ Tightening torque: 100 Nm (74 ftlb.)
- 8.1. Install crash stop -3-
(all-wheel drive only).
- Fit brake calliper.

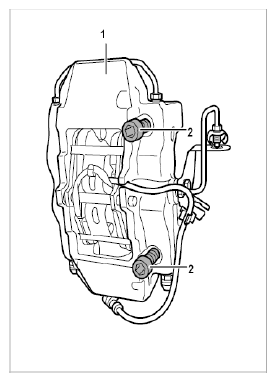

Fit brake calliper -1- and screw in and tighten M12 screws -2- for brake calliper.
Always replace M12 screws -2- for brake calliper before fitting.
→ Tightening torque: 85 Nm (63 ftlb.)
- Fit connecting link on anti-roll bar.

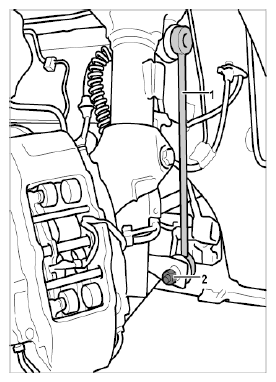

Fit connecting link -1- on anti-roll bar and screw on and tighten nut -2- .
→ Three-stage tightening procedure (1st stage: tighten to 50 Nm (37 ftlb.). 2nd stage: loosen by 90 degrees. 3rd stage: tighten to 65 Nm (48 ftlb.).: 65 Nm (48 ftlb.)
- Fit brake line holder and electric cable plug.

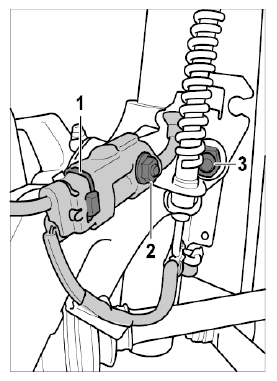

- 11.1. Connect electric cable plug -1- for the wheel speed sensor and brake pad wear indicator.
- 11.2. Secure electric cable plug by screwing on and tightening the nut -2- .
- 11.3. Fit brake line holder on the wheel carrier at the left and right by screwing on and tightening the nut -3-
.
→ Tightening torque: 10 Nm (7.5 ftlb.)
- Fit connector on range adjustment sensor.
