Component Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

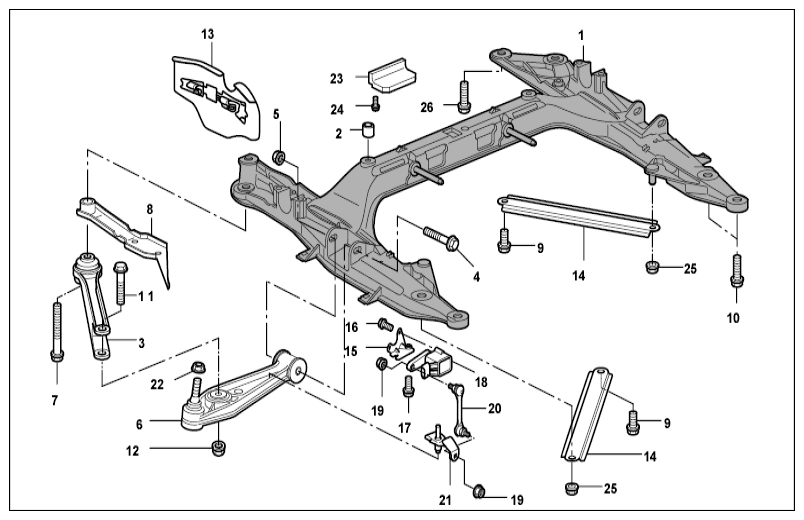

Fig 1: Exploded View Of Front Axle Assembly
G09825495Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Front-axle cross member
  2. Roll pin
  3. Diagonal control arm
  4. Screw, M12
  5. Lock nut, M12
  6. Control arm
  7. Screw, M14
  8. Plate
  9. Screw, M12
  10. Screw, M14
  11. Screw, M14
  12. Lock nut, M14
  13. Spoiler
  14. Diagonal brace (different length for C2 and C4)
  15. Holder (not generally fitted)
  16. Screw, M5 (not generally fitted)
  17. Screw, M6
  18. Sensor (not generally fitted)
  19. Nut (not generally fitted)
  20. Linkage (not generally fitted)
  21. Holder (not generally fitted)
  22. Lock nut, M12
  23. Crash stop (only fitted for all-wheel drive)
  24. Screw, M12 (only fitted for all-wheel drive)
  25. Lock nut, M12
  26. Screw, M12
