Preliminary Work

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transmission. → REMOVING TRANSMISSION
  2. Tighten the transmission using engine support 9589  or engine and gear support VW 540  at the assembly support.

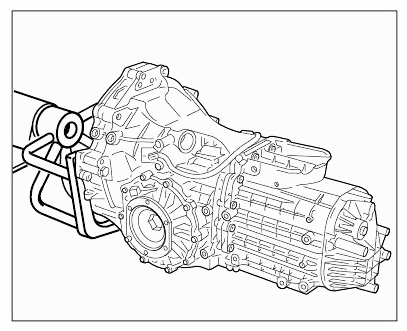

    Fig 1: Supporting Transmission Assembly Using Tool
    G09586792Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Drain transmission oil. → DRAINING TRANSMISSION OIL
  4. Disassemble the transmission. → DISASSEMBLING TRANSMISSION
