Installing Rear Apron

Information

• Some of the repair illustrations show only one side of the vehicle  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

1. Connect electric plug connection -1-  (-arrow "A"-  ) until the lock engages securely.

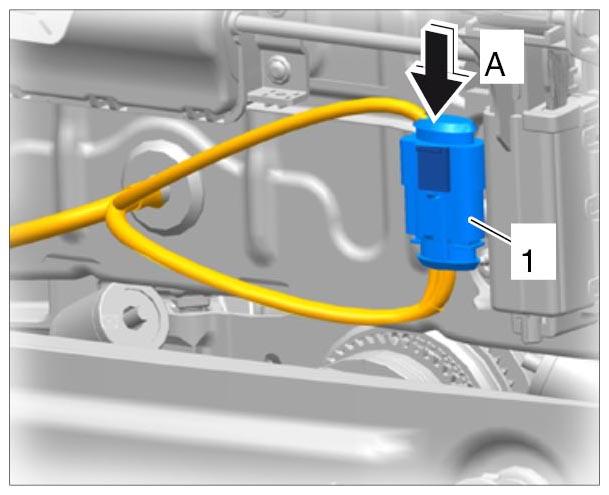

   Fig 1: Connecting Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Two people are needed to remove and install the rear apron!

2. Install rear apron.
   Fig 2: Installing Rear Apron

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Fit rear apron -1-  (-arrow "A"-  ).
   2. 2.2. Engage the rear apron -1-  on the wheel arch -arrows "B"-  .
3. GT4 only:  Fit fastening screws -1-  at the sides of the rear apron and tighten to Tightening torque 3.2 Nm (2 ft. lbs.) +/-0.3 Nm (+/-0.1 ft. lbs.)  .

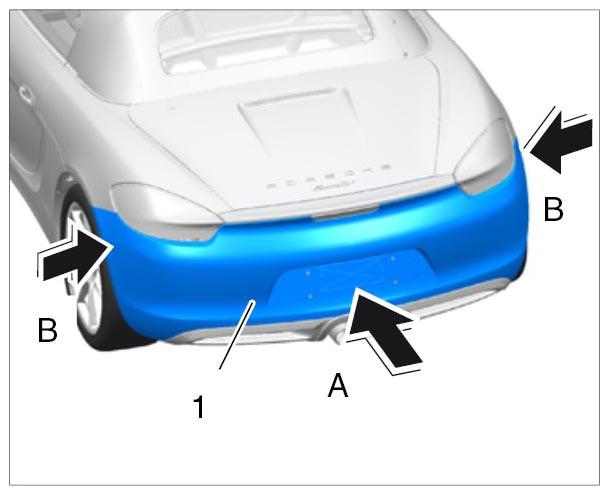

   Fig 3: Identifying Wheel Housing Fastening Screws (Shown On 991)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fit fastening screws -1-  at the underside of the rear apron and tighten to Tightening torque 3.2 Nm (2 ft. lbs.) +/-0.6 Nm (+/-0.4 ft. lbs.)  .

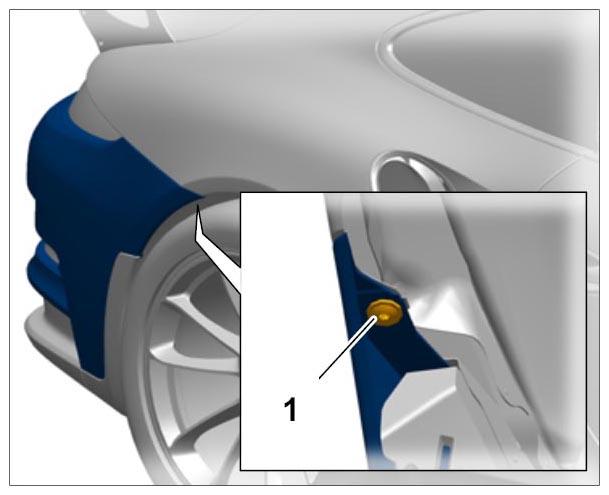

   Fig 4: Identifying Fastening Screws On Underside

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Fit fastening screws -1-  close to the tail lights and tighten to Tightening torque 7 Nm (5 ft. lbs.) +/-0.7 Nm (+/-0.4 ft. lbs.)  .

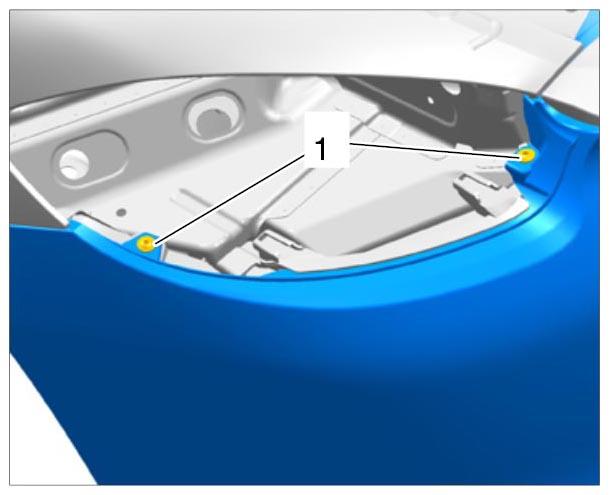

   Fig 5: Identifying Tail Lights And Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Fit fastening screws -1-  under the rear spoiler and tighten to Tightening torque 3.2 Nm (2 ft. lbs.) +/-0.6 Nm (+/-0.4 ft. lbs.)  .

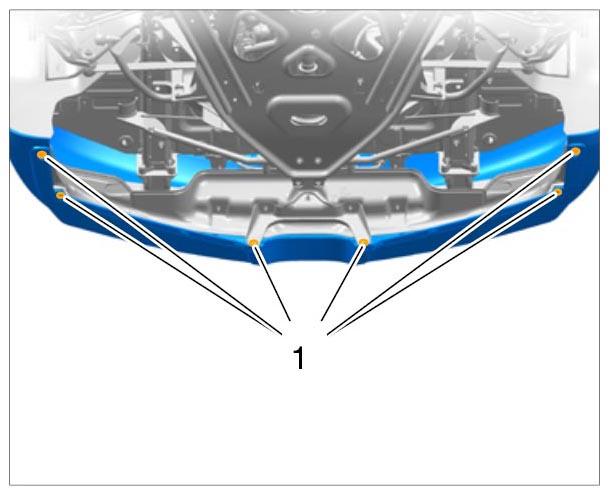

   Fig 6: Identifying Under Rear Spoiler Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
