Removing Front Retaining Strip

  1. Unscrew fastening nuts -2-  and remove the retaining strip -1-  at the front.

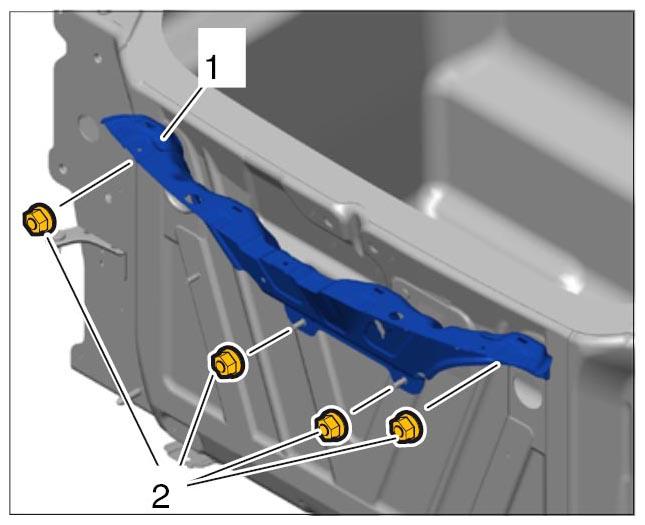

    Fig 1: Removing Front Retaining Strip
    G10026991Courtesy of PORSCHE CARS NORTH AMERICA, INC.
