Installing Front Retaining Strips

  1. Centre the front retaining strip in the screw-on points.

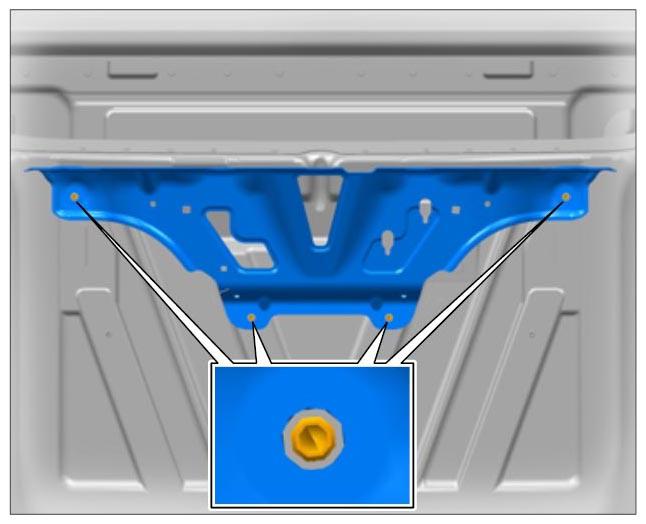

    Fig 1: Adjusting Retaining Strip
    G10026993Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw on and tighten fastening nuts -2-  on the front retaining strip -1-  to Tightening Torque 10 Nm (7.5 ft. lbs.)  until secure.

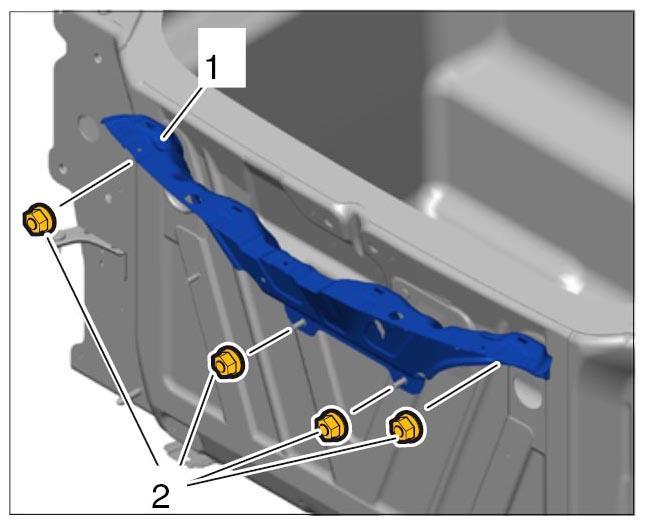

    Fig 2: Installing Front Retaining Strip
    G10026994Courtesy of PORSCHE CARS NORTH AMERICA, INC.
