Disassembling Front Apron

  1. Unclip cover for towing lug.
    1. 1.1. Release locking lug -arrow "A"-  .
    2. 1.2. Press out the cover -arrow "B"-  .
    3. 1.3. Unhook safety strap -arrow "C"-  .

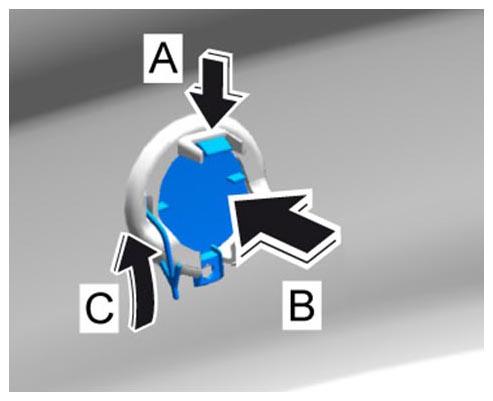

    Fig 1: Identifying Towing Lug Cover
    G10026972Courtesy of PORSCHE CARS NORTH AMERICA, INC.
