Technical Values

WARNING: This page is about a different variant/trim than selected.

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...	Toleranc...
Oil drain plug		Tightening torque	20 (15 ftlb.) Nm	+ 2 (1.5 ftlb.) Nm
Overflow pipe	on ATF pan	Tightening torque	2 Nm
ATF lines to transmission		Tightening torque	20 (15 ftlb.) Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

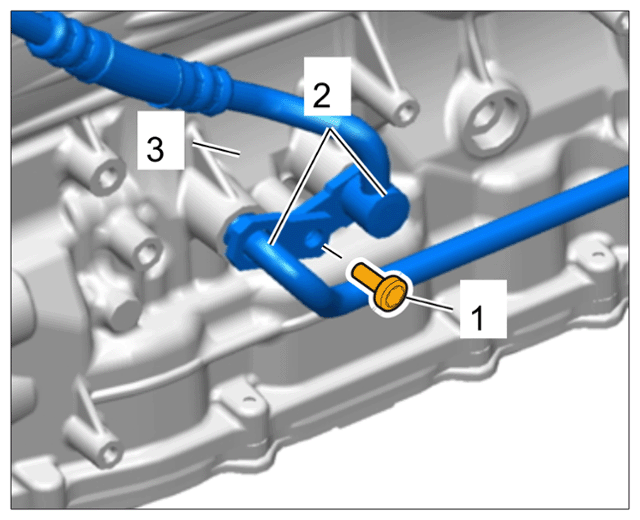

Detaching ATF lines at the bottom
