Removing Steering Column Casing

  1. Adjust steering wheel to lower position.
  2. Unclip upper part of casing.

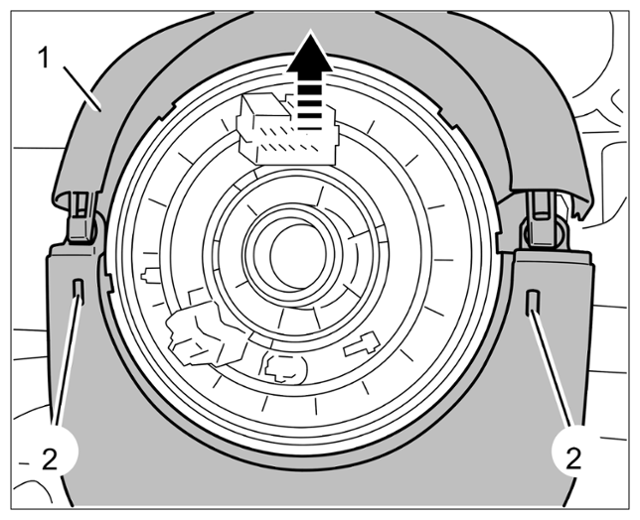

    G16330672Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping upper part

    1. 2.1 Turn steering wheel in such a way that the openings on the front are accessible.
    2. 2.2 Unclip upper part of casing -1-  through the openings on the front -2-  using a suitable screwdriver.
  3. Fold upper part of steering column casing -1-  up and unclip the clips on the dust boot -2-  .

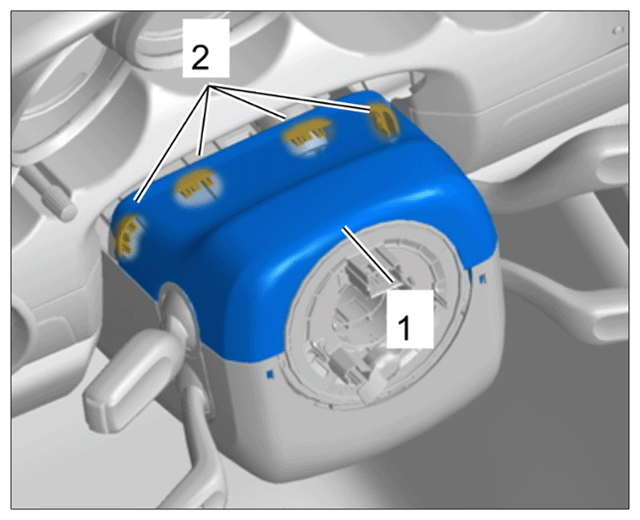

    G16330673Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping dust boot

  4. Remove upper part of steering column casing -1-  .
  5. Release lower part of casing.

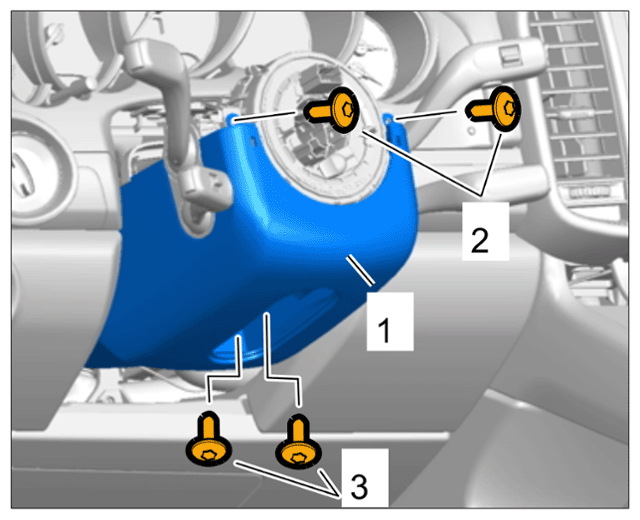

    G16330674Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on lower part

    1. 5.1 Unscrew fastening screws -3-  on lower part of casing -1-  . (For electric steering-wheel adjustment only)  .
    2. 5.2 Turn the steering wheel in such a way that the fastening screws -2-  on the front are accessible.
    3. 5.3 Unscrew fastening screws -2-  on lower part of casing -1-  .
  6. Release and pull off plug connection. (For electric steering-wheel adjustment only)  .
  7. Remove lower part of steering column casing -1-  .
