Removing Cowl For Throttle Housing (Y-Pipe)

Turbo engines =>

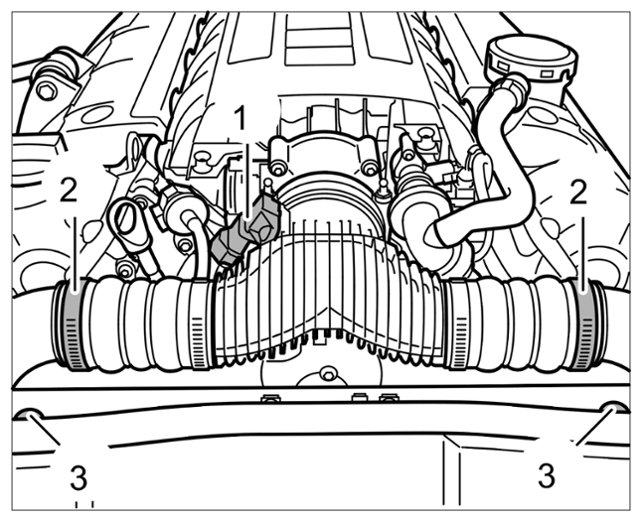

1. On turbo engine: Disconnect boost pressure sensor. -1-  (ignore 2 and 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Boost pressure sensor

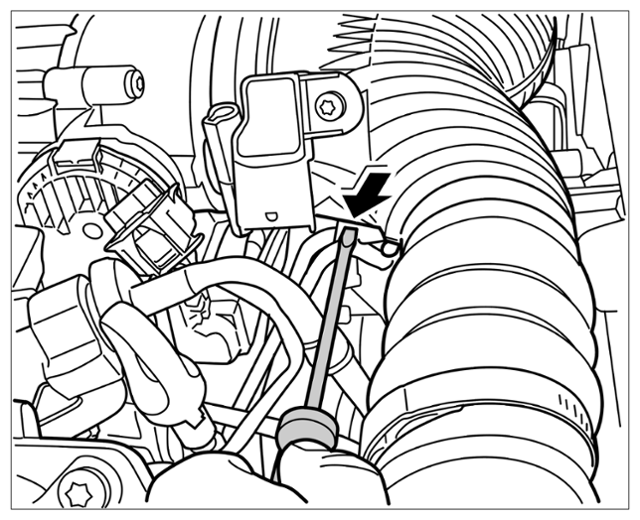

2. Lever off clip under the Y-pipe with a screwdriver. -arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line holder under Y-pipe

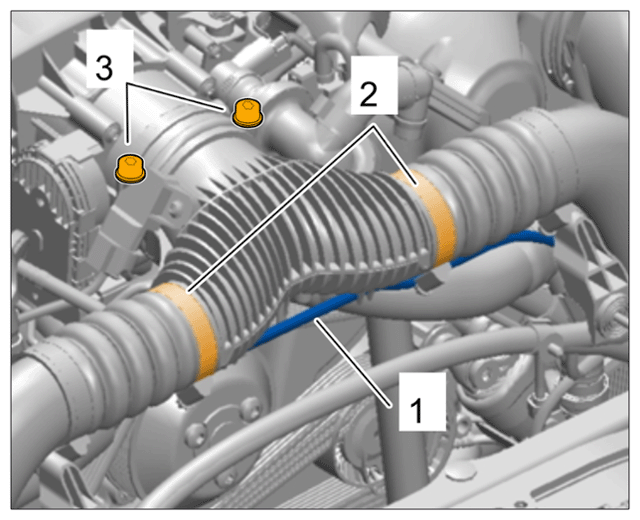

3. Detach fitted control line -1-  under the Y-pipe.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing Y-pipe

4. Loosen screw-type clamps -2-  between the Y pipe and the pressure pipe.
5. Release both locking pins -3-  on the Y-pipe in a clockwise direction and pull them off. Pull Y-pipe off the throttle housing.

   Naturally-aspirated engines =>

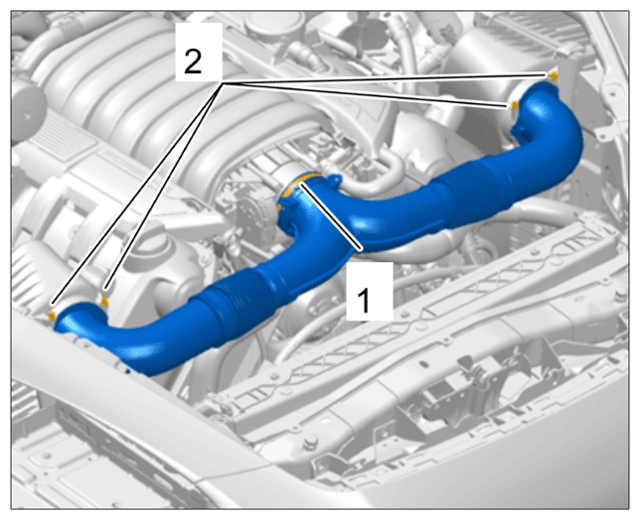

6. Loosen screw-type clamp -1-  on the throttle housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

7. Release the locking pins -2-  of the Y-pipe on both sides in a clockwise direction and pull them off.
