Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des..	Type	Basic val...
Heat shield to steering gear	Item 8: M6 x 16 thread	Tightening torque	10 (7.5 ftlb.) Nm
Coolant pipes to transmission	Arrows	Tightening torque	9 (6.5 ftlb.) Nm

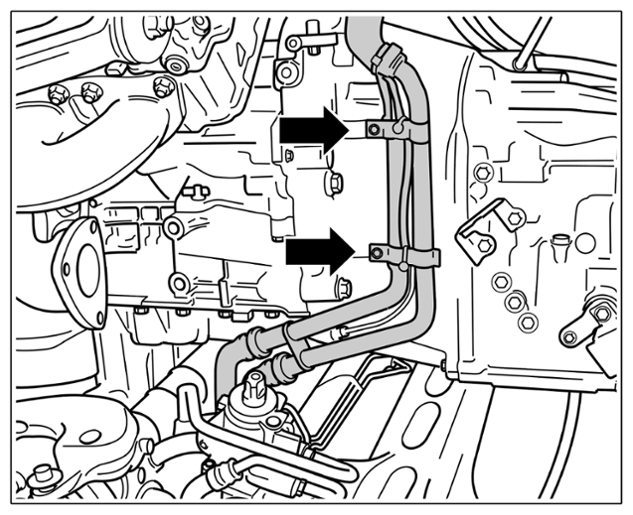

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Coolant pipes on transmission
Primary catalytic converter to exhaust manifold	M8 lock nuts/Always replace nuts following removal	Tightening torque	23 (17 ftlb.) Nm

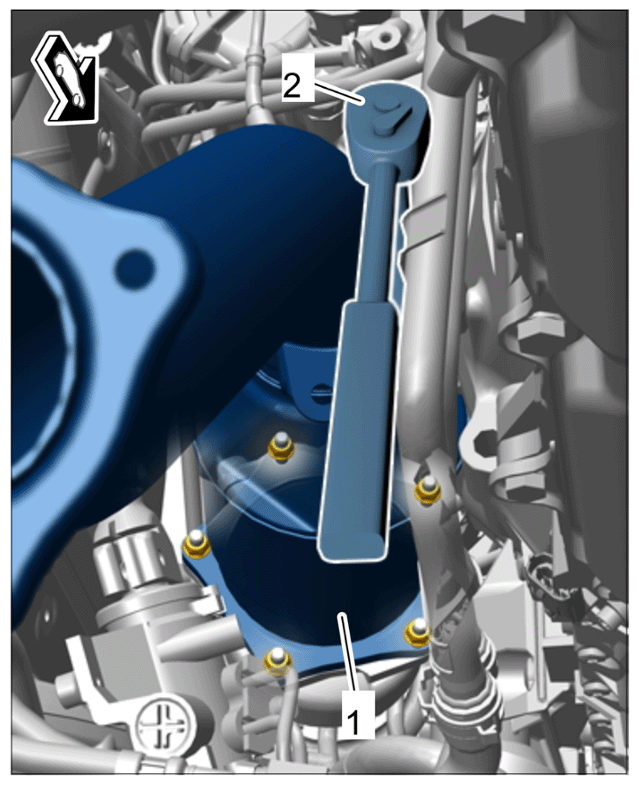

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Threaded joint for primary catalytic converter
Catalytic converter to primary catalytic converter	M8 lock nuts/Always replace nuts following removal	Tightening torque	23 (17 ftlb.) Nm
Primary catalytic converter to holder	M8 screw	Tightening torque	23 (17 ftlb.) Nm

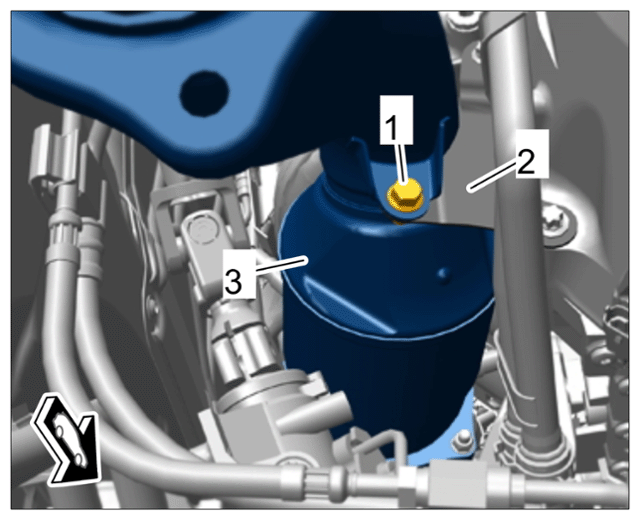

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Left primary catalytic converter hloder
