Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des..	Type	Basic val...
Catalytic converter to primary catalytic converter	M8 lock nuts/Always replace nuts following removal	Tightening torque	23 (17 ftlb.) Nm
Catalytic converter to transfer gear holder	M8 screw	Tightening torque	23 (17 ftlD.) Nm

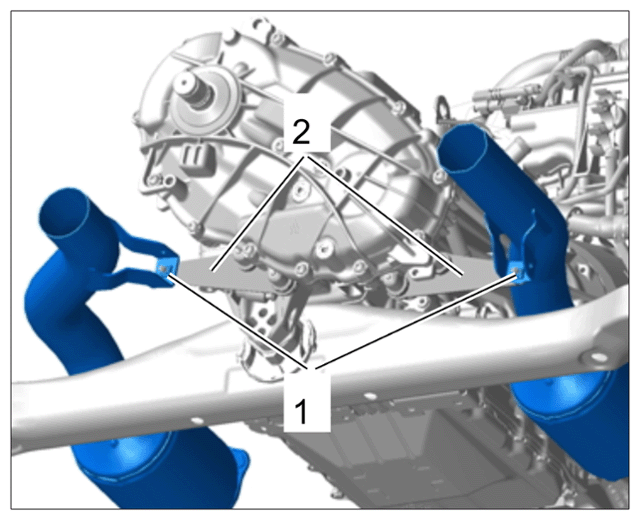

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Catalytic converter holders
Exhaust clamp	Maximum inclination/Item 3	Adjustment value	10°

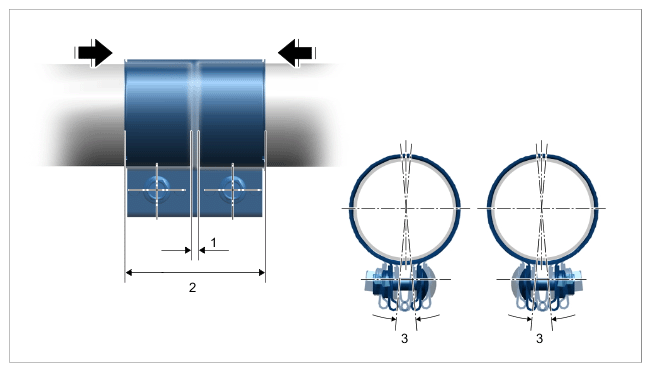

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Installation position of exhaust clamp
Exhaust clamp	Distance between exhaust pipts/Item 1	Adjustment value	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Installation position of exhaust clamp
Clamp on catalytic converter	M8 lock nut/Always replace clamp following removal	Tightening torque	23 (17 ftlb.) Nm

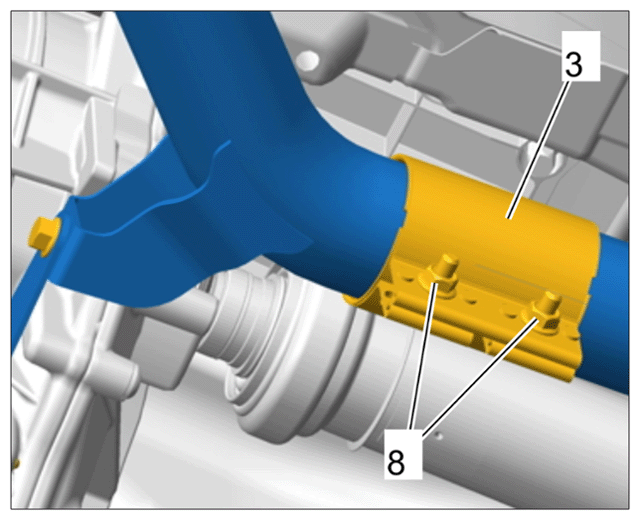

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Clamp securing catalytic converter to exhaust system
