Removing Secondary Air Valve

  1. Disconnect secondary-air hoses and pipe.

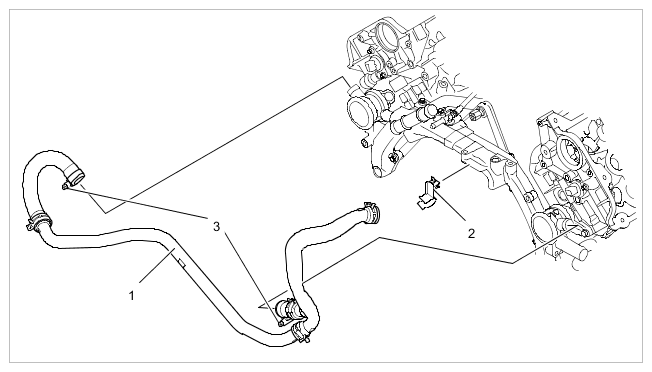

    Fig 1: Secondary-Air Hoses Components Location
    G16310615Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Secondary-air hoses

    1  Secondary-air pipe
    2  Holder with clamp
    3  Clamp
  2. Detach secondary air valve connections.
  3. Remove screw -2-  and carefully pull the secondary air valve -1 or 3-  out of the cylinder head.

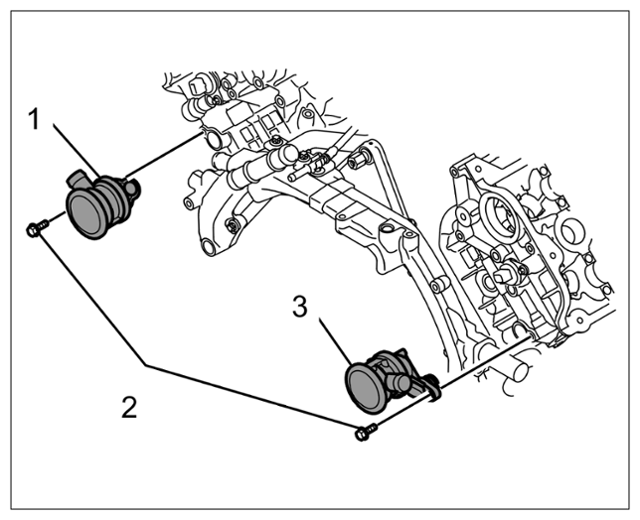

    G16310616Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installation position of secondary air valves
