Installing Secondary Air Valve

  1. Fit secondary air valve with a new, lightly greased sealing ring into the cylinder head.

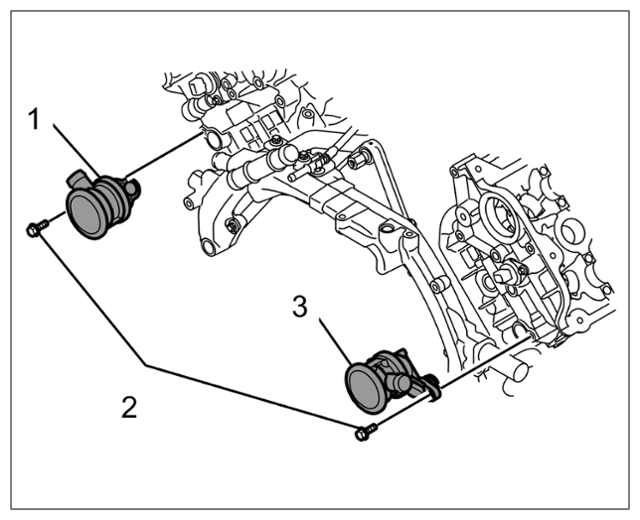

    G16310617Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installation position of secondary air valves

  2. Fit secondary air valve with an M6 screw. Fit secondary air valve connections.

    > Tightening torque 10 Nm.

  3. Fit secondary-air hoses.
