Removing Tailpipes

CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

Information

This description also applies for all other tailpipe variants (single or dual pipe)

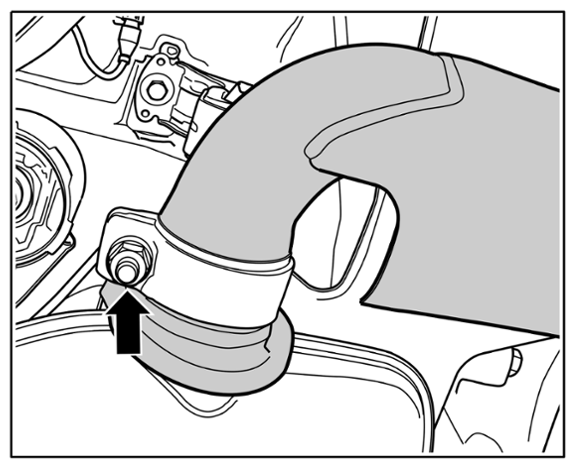

  1. Loosen fastening screw -arrow-  on ball clamp.
    G16310608Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screw for tailpipe

  2. Loosen tailpipes by turning and pulling off.
