Installing Tailpipes

  1. Clean extension positions and replace ball clamp if necessary, depending on its condition.
  2. Put tailpipes in installation position and align

    > 263415 ALIGNING TAILPIPES

  3. Tighten fastening screw on ball clamp to > Tightening torque 30 (22 ftlb.) Nm  .

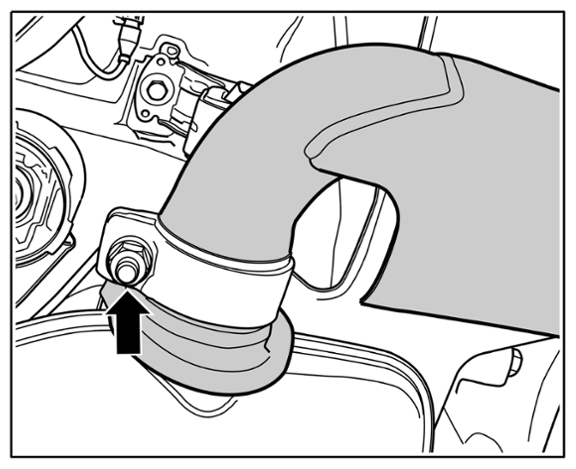

    G16310609Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screw for tailpipe clamp
