Component Overview

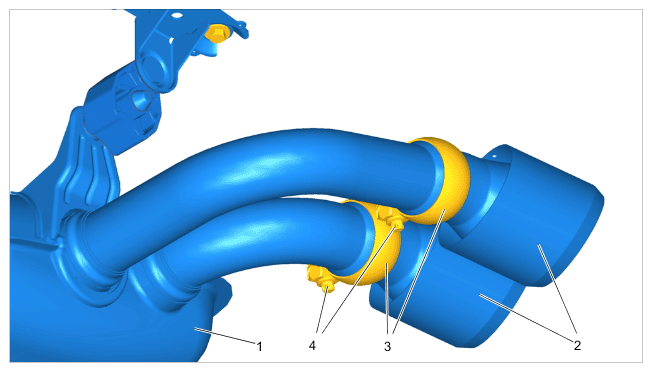

Fig 1: Tailpipes Components Location - V8 Naturally-Aspirated Engines & V6 Engines

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview of tailpipes on V8 naturally-aspirated engines & V6 engines

1	Rear silencer
2	Tailpipe
3	Ball clamp
4	Fastening screw on ball clamp

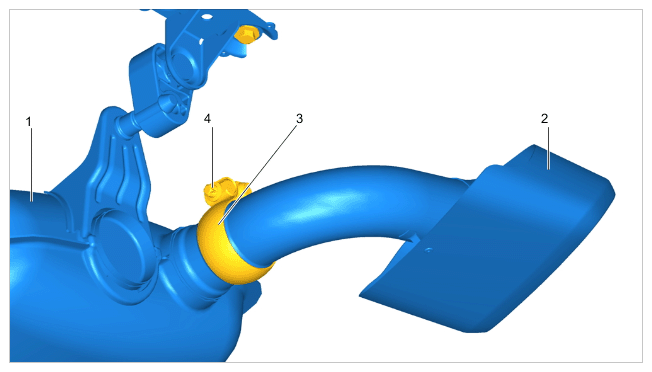

Fig 2: Tailpipes Components Location - V8 Turbo Engines

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview of tailpipes on V8 turbo engines

1	Rear silencer
2	Tailpipe
3	Ball clamp
4	Fastening screw on ball clamp
