Adjusting And Aligning Tailpipes

Information

If the gap dimensions of the tailpipes with respect to the rear apron are different due to design changes, the tailpipes must De adjusted to a uniform distance from the rear apron.

Check gap dimensions of tailpipe with respect to rear apron. =>

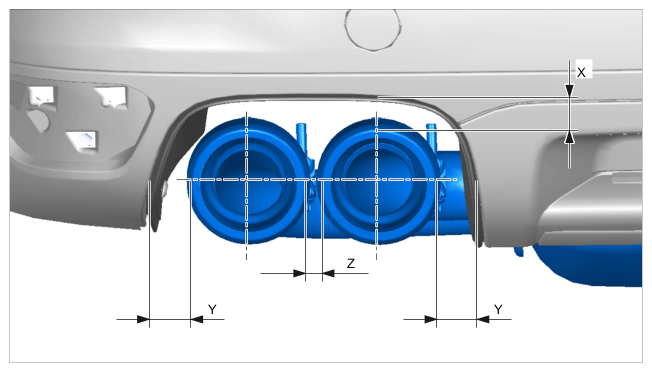

Tailpipe - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tailpipe - V8 Turbo

X	Gap with respect to top of rear apron > Gap dimension X 18 mm  .
Y	Work out qap at sides to the left and right uniformly > Gap dimension Y 18 mm
Z	Gap between tailpipes > Gap dimension Z 5 mm  .

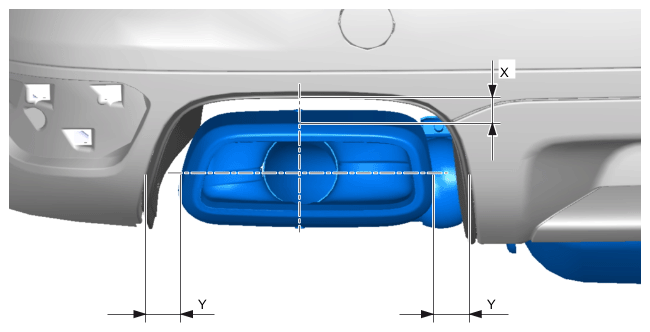

Tailpipe - V8 naturally

aspira ted engine and

basic variant

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tailpipe - V8 naturally aspirated engine and basic variant

X	Gap with respect to top of rear apron > Gap dimension X 20 mm  .
Y	Work out gap at sides to the left and right uniformly > Gap dimension Y 20 mm  .

Tailpipe, V6 engine

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

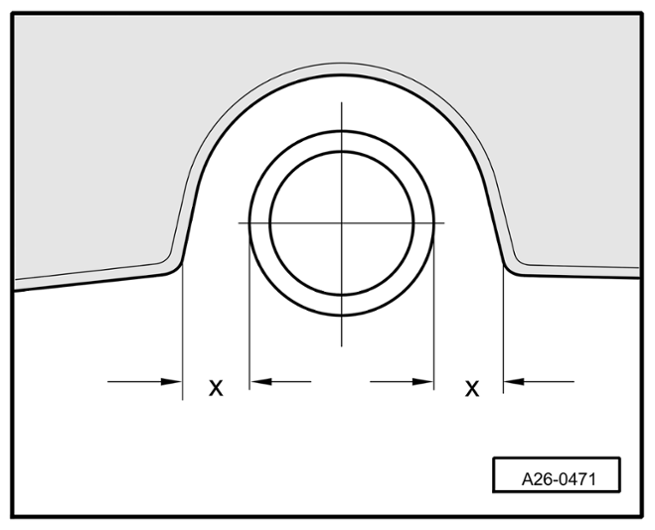

Tailpipe, V6 engine

X	Centre distance at the sides evenly to the left and right
