Replacing Rear Silencer

CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

CAUTION: Heavy components
  • Risk of squashing

    → Wear personal protective gear.

    → Get someone to help if necessary.

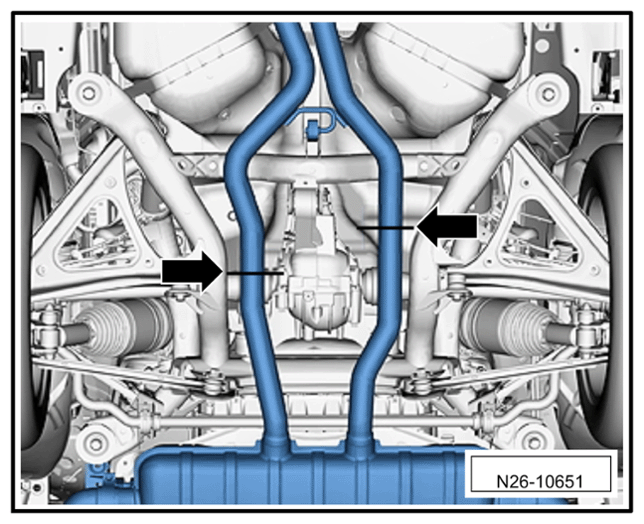

  1. There is a small notch on the underside of the exhaust pipes that is level with the rear axle differential. The notch marks the connection point. -arrows-
    G16310597Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Exhaust pipe connection points

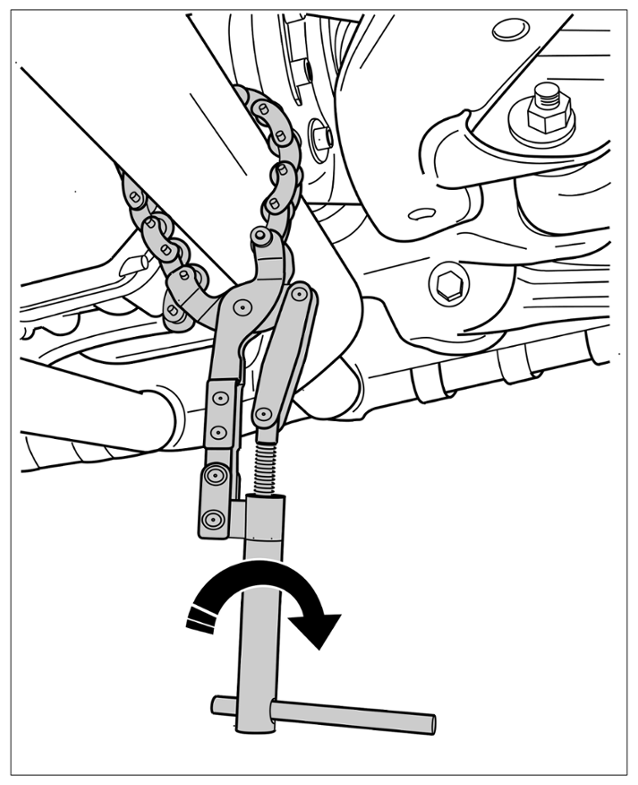

  2. Place the pipe cutter chain > Nr.166 - chain pipe cutter  or > Nr.166-1 - ratchet pipe cutter  (or similar tool) a.ojnd the exhaust pipe close to the connection point marking and engage it at the other end of the pipe cutter. Then clamp the chain firmly by turning the handle. > Placing pipe cutter chain around exhaust pipe
    G16310598Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Placing pipe cutter chain around exhaust pipe

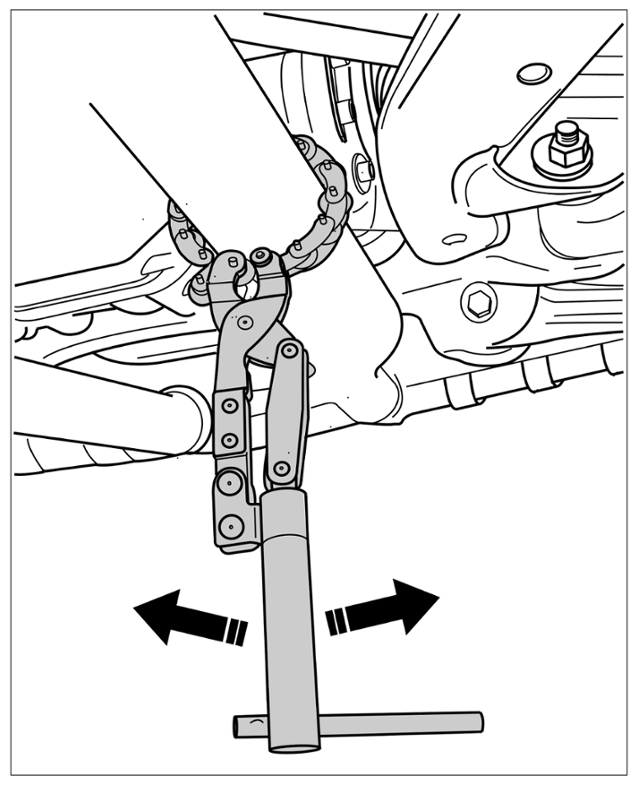

  3. Swivel ti e pipe cutter to and fro ir widt movements until the pipe is cut. While doing this, keep tightening the chain by turning the handle. > Cutting through pipe with pipe cutter
    G16310599Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cutting through pipe with pipe cutter

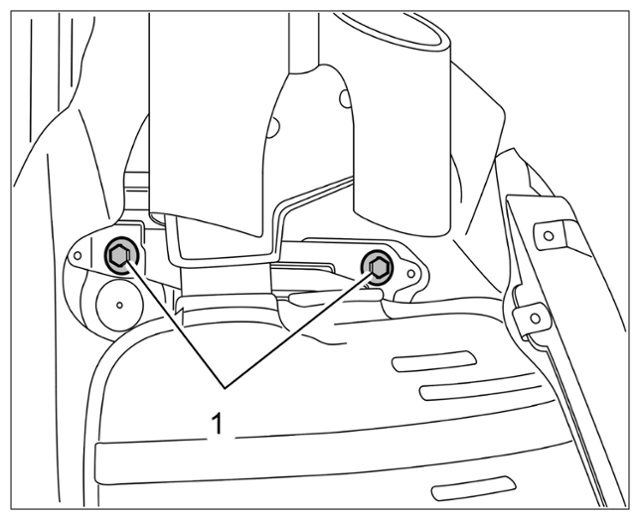

  4. Remove rear holders for the rear silencer.
    G16310600Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear silencer holder

    1. 4.1  Secure the rear silencer with the help of another person or a transmission jack.
    2. 4.2  Unscrew two fastening screws -1-  on each holder.
    3. 4.3  Remove rear silencer.
  5. Deburr cut on inside and outside of exhaust pipe. If necessary, remove rust from exhaust pipe using suitable polishing agents and manually restore to roundness.
  6. Fit new suspension rubbers or holders if necessary.
  7. Push new exhaust clamp onto exhaust pipe.
  8. Lift the rear silencer into installation position with the help of another perso n or a transmission jack. Tighten two fastening screws -1-  on each holder to the specified tightening torque. > Tightening torque 23 (17 ftlb.) Nm
    G16310601Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear silencer holder

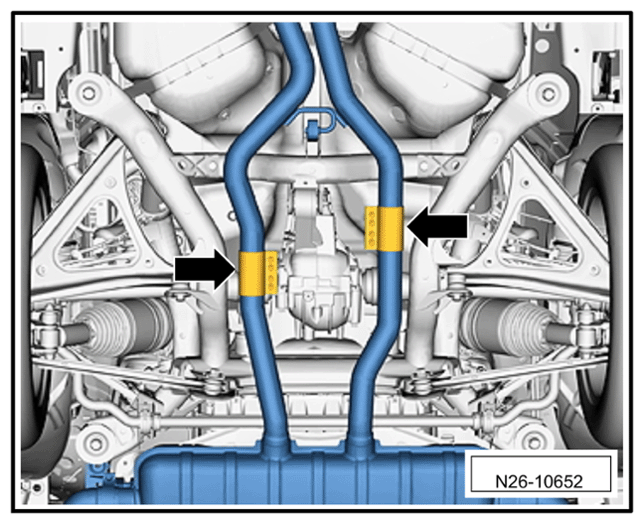

  9. Position clamping sleeves in the centre of the cutting location during installation.

    Fit clamping sleeves in such a way that the ends of the screws do not protrude over the lower edge of the clamping sleeve. The clamping sleeve must not touch any other components, even when the exhaust system is moving quite significantly.

    > Tightening torque 33 (24 ftlb.) Nm

    G16310602Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Postioning clamping sleeves
