Removing Compressor

→ Let the fluid cool down.

→ Wear personal protective gear.

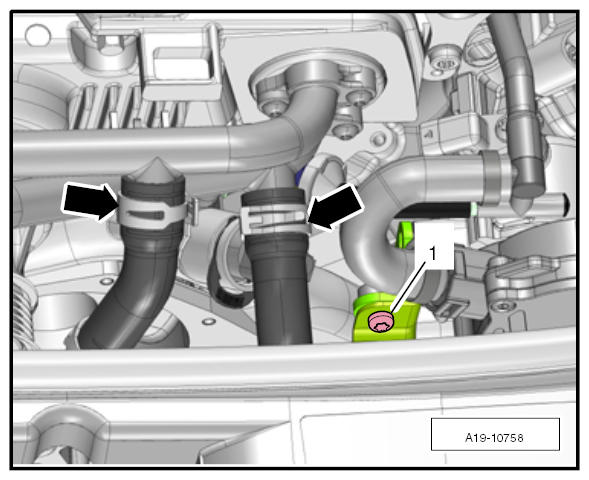

1. Close off coolant hoses with hose clamps Hose Clamp 3094  and remove from the coolant pipes on the compressor by releasing the hose clamps -arrows-  .
   Fig 1: Locating Coolant Hoses On Compressor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

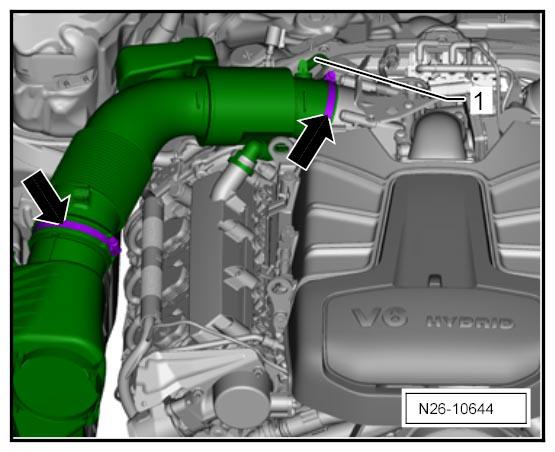

2. Remove air guide pipe by pulling off the hose -1-  and loosening the hose clamps -arrows-  .
   Fig 2: Locating Air Guide Pipe

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove solenoid valve.

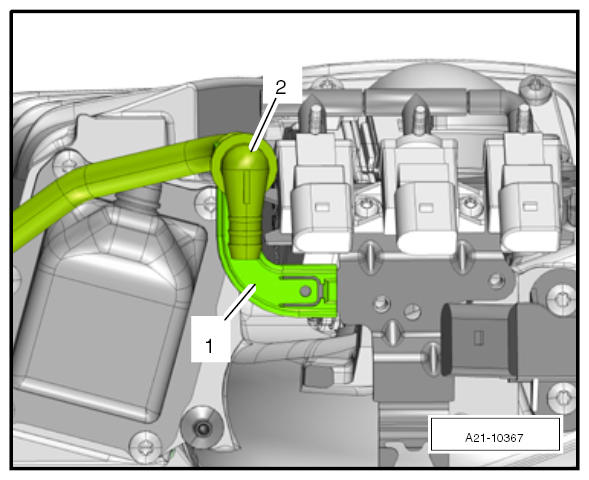

   1. 3.1. Disconnect electric plug connection -1-  on solenoid valve for the carbon canister and remove vacuum hose -2-  .
   2. 3.2. Take the solenoid valve for the carbon canister out of the holder and set it aside together with the connected hose.

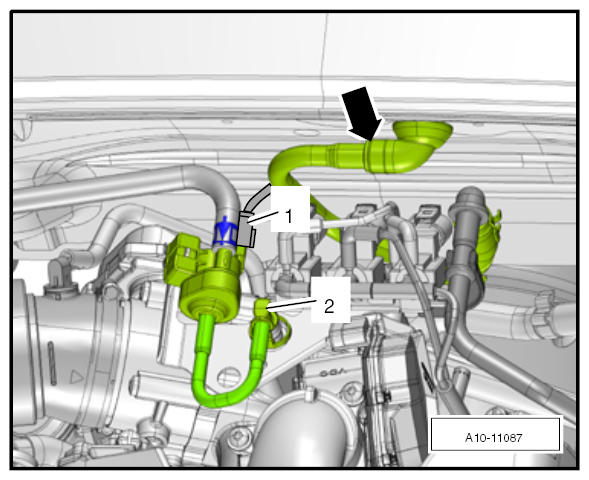

      Fig 3: Locating Solenoid Valve For Carbon Canister

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

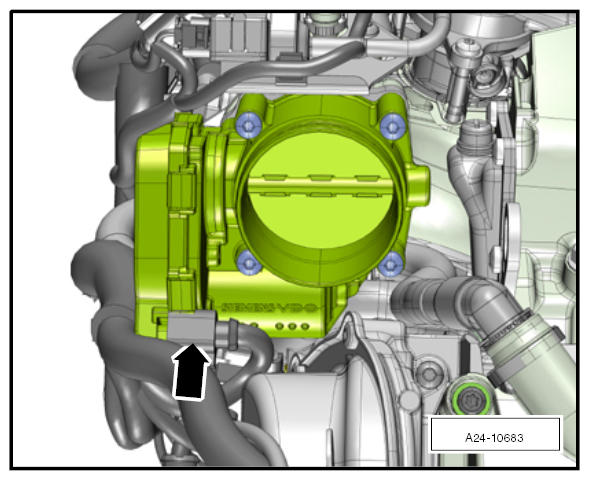

4. Disconnect electric plug connection -arrow-  on the throttle valve control unit.
   Fig 4: Locating Throttle Valve Control Unit Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

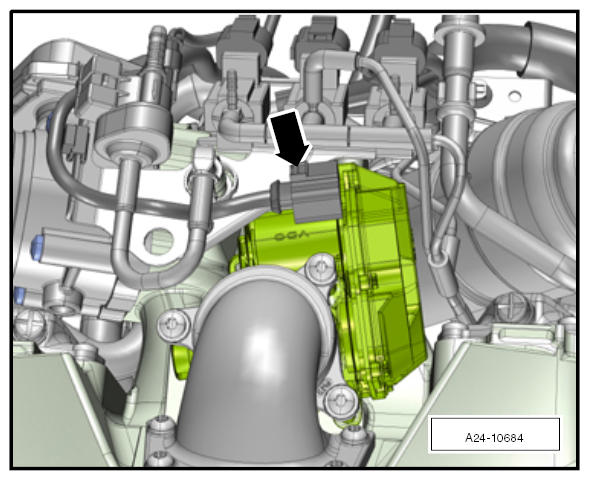

5. Disconnect electric plug connection -arrow-  on the regulating valve control unit.
   Fig 5: Locating Regulating Valve Control Unit Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Disconnect electric plug connection -1, 2, 3-  .

   Information

   Mark installation position of vacuum hoses for re-installation.

   Pull off vacuum hoses -4 through 7-  .

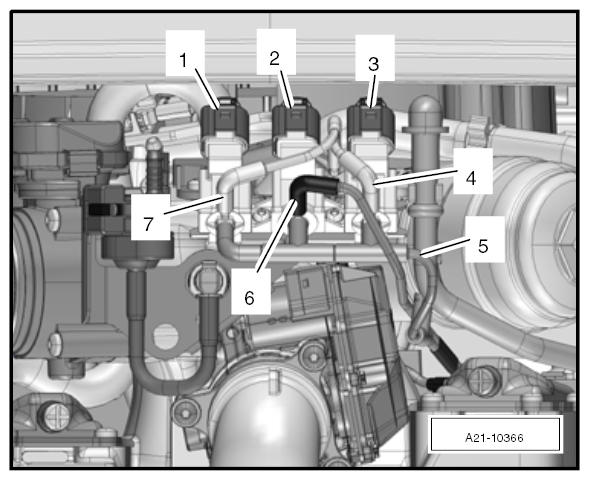

   Fig 6: Identifying Connectors And Vacuum Hoses

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Ignore arrows.

7. Disconnect electric plug connection -1-  on the intake air temperature sensor/intake manifold pressure sensor.
   Fig 7: Locating Intake Air Temperature Sensor Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

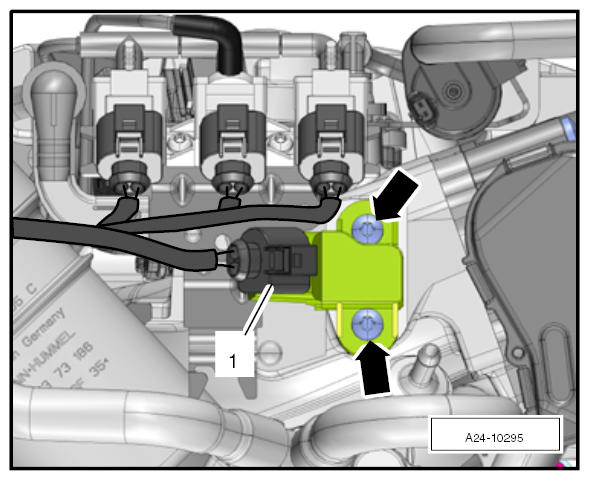

8. Expose vacuum hose -1-  .

   Unscrew screws at the left and right -arrows-  and remove cover -2-  .

   Fig 8: Locating Cover Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

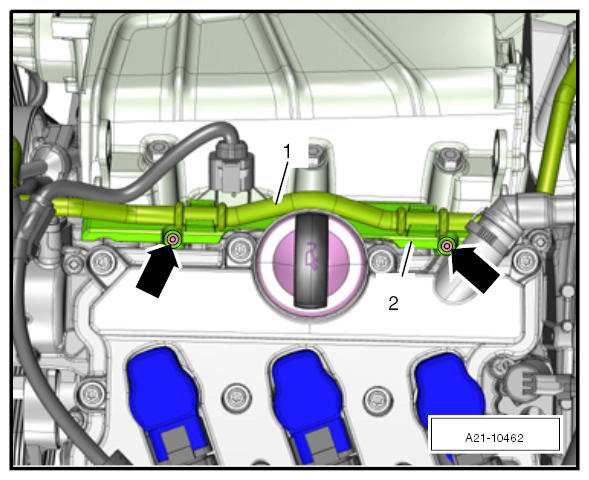

9. Expose vacuum hose -2-  for the brake booster at the holder -1-  .
   Fig 9: Identifying Brake Booster Vacuum Hose

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Remove compressor.
    1. 10.1. Disconnect electric plug connection -1-  and -2-  .
       NOTE: Dirt on injection system components

       • Material damage
       • Rough-running engine
       • Bad exhaust emissions

       → Thoroughly clean connection points and adjacent areas before loosening them. If the engine is very dirty, wash it before starting disassembly work.

       → Lay removed parts on a clean surface and cover them. Do not use fibre-shedding cloths.

       → Carefully cover components or seal them if repair work will not be carried out immediately. Place rubber caps on connections. Seal intake openings with film or adhesive tape.

       → Only install clean parts. Do not take spare parts out of the packaging until just before installation.

       → Never use compressed air when the system is open. Do not move the vehicle.

       NOTE: Dirt on injection system components

       • Material damage
       • Rough-running engine
       • Bad exhaust emissions

       → Thoroughly clean connection points and adjacent areas before loosening them. If the engine is very dirty, wash it before starting disassembly work.

       → Lay removed parts on a clean surface and cover them. Do not use fibre-shedding cloths.

       → Carefully cover components or seal them if repair work will not be carried out immediately. Place rubber caps on connections. Seal intake openings with film or adhesive tape.

       → Only install clean parts. Do not take spare parts out of the packaging until just before installation.

       → Never use compressed air when the system is open. Do not move the vehicle.

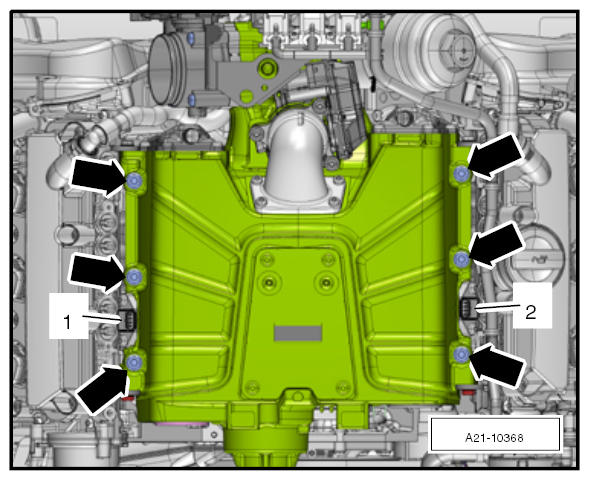

    2. 10.2. Unscrew nuts -arrows-  and remove compressor with charge-air cooler in an upward direction.
