Removing Glove Compartment Light

  1. Switch off ignition and pull remote control out of ignition lock.
  2. Open the glove compartment and unclip glove compartment light -1-  using a suitable tool -arrow-  .

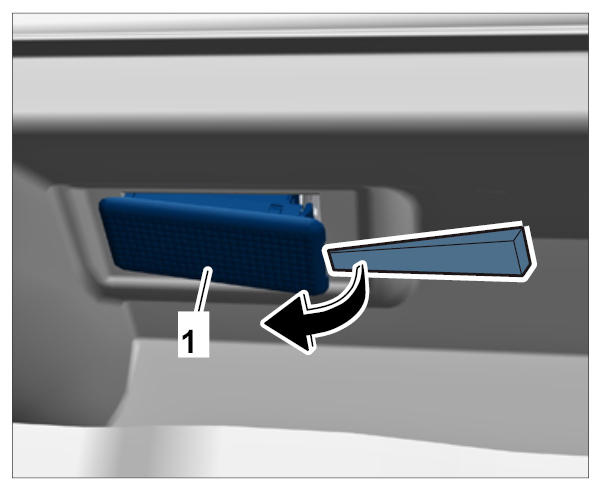

    Fig 1: Removing Glove Compartment Light
    G09941975Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Release electric plug connection -1-  (-arrows-  ) and disconnect it from the glove compartment light -2-  .

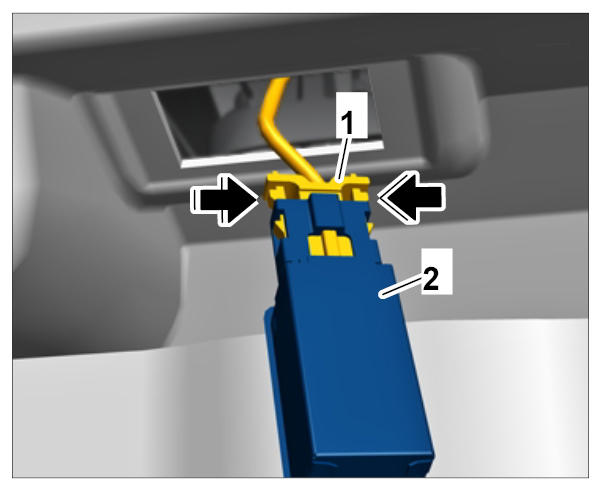

    Fig 2: Disconnecting Electric Plug Connection
    G09941976Courtesy of PORSCHE CARS NORTH AMERICA, INC.
