Installing Front Drive Shaft

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Grease the splines of the drive shaft lightly with Optimoly HT.
Replace lock nuts.
Carefully guide the drive shaft into the wheel hub from below. Do not damage the drive shaft and adjacent components.

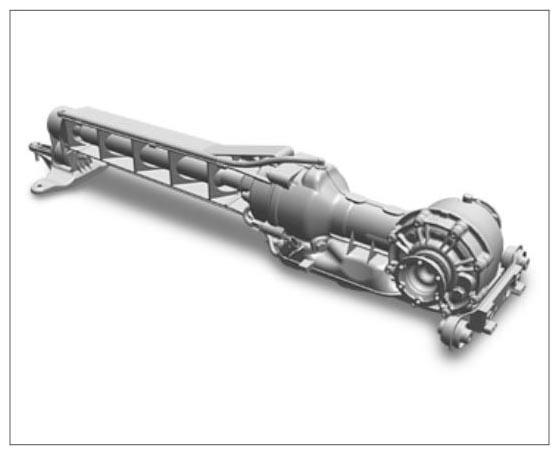

Install front final drive.

Fig 1: Identifying Front Final Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

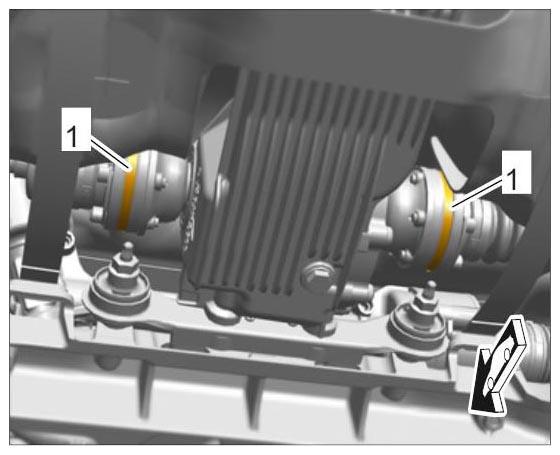

Fit drive shafts on the transmission side. Screw in hexagon socket head bolts between the drive shaft and transmission flange and tighten bolts.
Counter at the wheel to prevent it from turning as well.

Tightening torque 39 Nm (29 ftlb.)

Fig 2: Identifying Drive Shafts Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

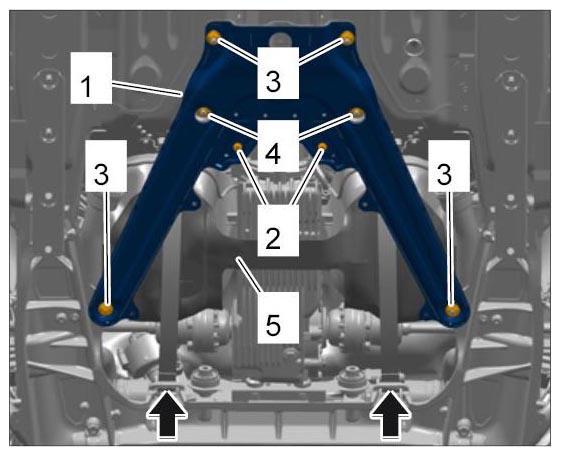

Install subframe -1- and tray -5- for the fuel tank.
Observe specified tightening torques:
1. 5.1. M6 hexagon-head bolts -2- Tightening torque 10 Nm (7.5 ftlb.)
2. 5.2. M10 fastening nuts -3- and M10 screws -4- Tightening torque 65 Nm (48 ftlb.)

  Fig 3: Locating Front-Axle Subframe Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the drive shaft at the wheel hub. Use a new lock nut.
When tightening, get another mechanic to help by operating the brake. Tightening torque 460 Nm (340 ftlb.)
